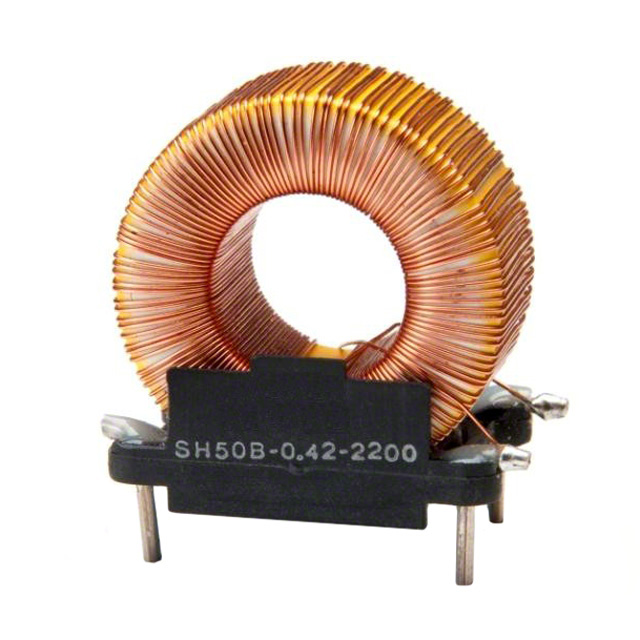

SH50B-0.42-2200
ActiveAmgis, LLC
FIXED IND 2.2MH 420MA 1.8 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SH50B-0.42-2200
ActiveAmgis, LLC
FIXED IND 2.2MH 420MA 1.8 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SH50B-0.42-2200 |
|---|---|
| Current Rating (Amps) | 0.42 A |
| DC Resistance (DCR) [Max] | 1.8 Ohm |
| Height - Seated (Max) [Max] [z] | 35 mm |
| Height - Seated (Max) [Max] [z] | 1.378 in |
| Inductance | 2.2 mH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Vertical |
| Package / Case | 4 Leads |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.449 in |
| Size / Dimension [x] | 36.8 mm |
| Size / Dimension [y] | 0.799 in |
| Size / Dimension [y] | 20.3 mm |
| Tolerance | 20 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 5.47 | |
Description
General part information
SH50B-0.42-2200
2.2 mH Unshielded Toroidal Inductor 420 mA 1.8Ohm Max Radial, Vertical, 4 Leads (Open)
