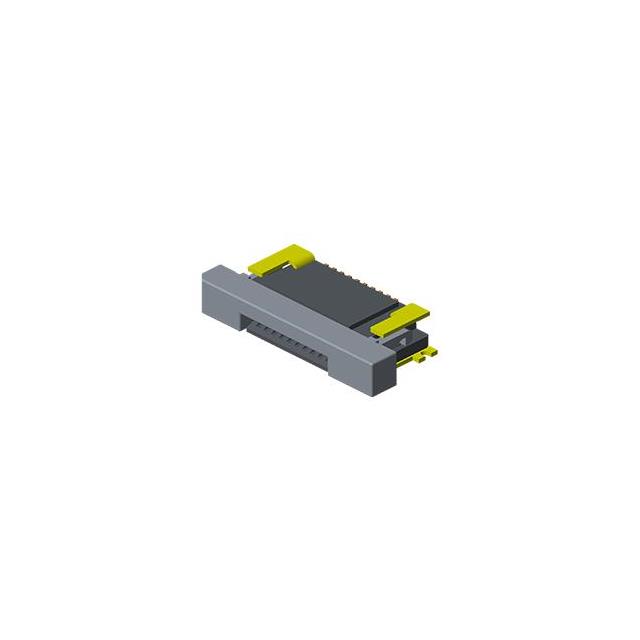

50542-02001-001 - 50542-02001-001

50542-02001-001

Active
Aces Connectors

CONN FPC BOTTOM 20POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
50542-02001-001 - 50542-02001-001

50542-02001-001

Active
Aces Connectors

CONN FPC BOTTOM 20POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification50542-02001-001
Actuator ColorWhite
Actuator MaterialThermoplastic
Cable End TypeTapered
Connector/Contact TypeContacts, Bottom
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Current Rating (Amps)500 mA
FeaturesZero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness0.3 mm
Flat Flex TypeFPC
Height Above Board0.079 in
Height Above Board2 mm
Housing ColorBlack
Housing MaterialThermoplastic
Locking FeatureFlip Lock, Backlock
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount, Right Angle
Number of Positions20
Operating Temperature [Max]80 C
Operating Temperature [Min]-40 °C
Pitch [x]0.5 mm
Pitch [x]0.02 in
TerminationSolder
Voltage Rating50 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.59
10$ 0.45
25$ 0.40
50$ 0.37
100$ 0.34
250$ 0.31
500$ 0.29
1000$ 0.27
Digi-Reel® 1$ 0.59
10$ 0.45
25$ 0.40
50$ 0.37
100$ 0.34
250$ 0.31
500$ 0.29
1000$ 0.27
Tape & Reel (TR) 2000$ 0.25
4000$ 0.23
6000$ 0.22
10000$ 0.21
14000$ 0.20
20000$ 0.20
50000$ 0.19

Description

General part information

50542-02001-001

20 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
