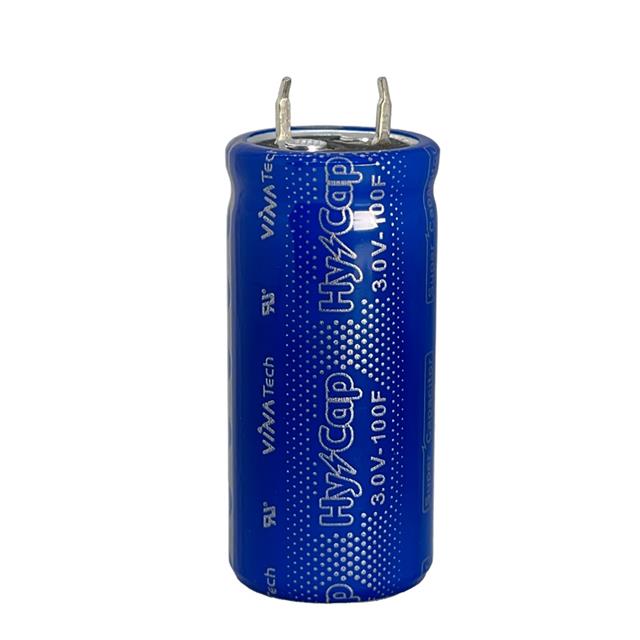

VEC3R0107QG
ActiveVINATech Co LTD
100F 3.0V 22*45 SNAPIN TYPE EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VEC3R0107QG
ActiveVINATech Co LTD
100F 3.0V 22*45 SNAPIN TYPE EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VEC3R0107QG |
|---|---|
| Capacitance | 100 F |
| ESR (Equivalent Series Resistance) | 6 mOhm |
| Height - Seated (Max) [Max] [z] | 1.85 in |
| Height - Seated (Max) [Max] [z] | 47 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension [diameter] | 22 mm |
| Size / Dimension [diameter] | 0.866 in |
| Termination | PC Pins |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | -10 % |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.47 | |
| 10 | $ 6.63 | |||
| 25 | $ 5.64 | |||
| 50 | $ 5.47 | |||
| 100 | $ 5.11 | |||
| 500 | $ 4.50 | |||
| 1000 | $ 4.30 | |||
Description
General part information
VEC3R0107QG
100 F (EDLC) Supercapacitor 3 V Radial, Can - Snap-In 6mOhm @ 1kHz 1000 Hrs @ 65°C
