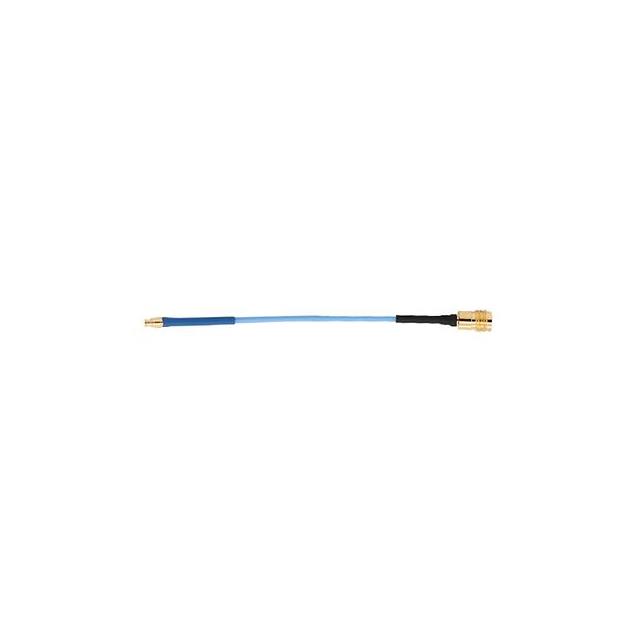

FX047-PF1KF1-12inch
ActiveWITHWAVE CO LTD
SMPM(F) TO 2.92 MM(F) CABLE ASSE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FX047-PF1KF1-12inch
ActiveWITHWAVE CO LTD
SMPM(F) TO 2.92 MM(F) CABLE ASSE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FX047-PF1KF1-12inch |
|---|---|
| 1st Connector | SMPM Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMPM Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 0.047" Flexible Cable |
| Color | Blue |
| Frequency - Max [Max] | 40 GHz |
| Length | 12 " |
| Length | 304.8 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMPM to SMPM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 119.00 | |
| 10 | $ 113.10 | |||
| 25 | $ 107.10 | |||
| 50 | $ 101.20 | |||
Description
General part information
FX047-PF1KF1-12inch
Cable Assembly Coaxial SMPM to SMPM 0.047" Flexible Cable 12.00" (304.80mm)
