6A-061WP12-002
ActiveENG ELECTRIC CO., LTD

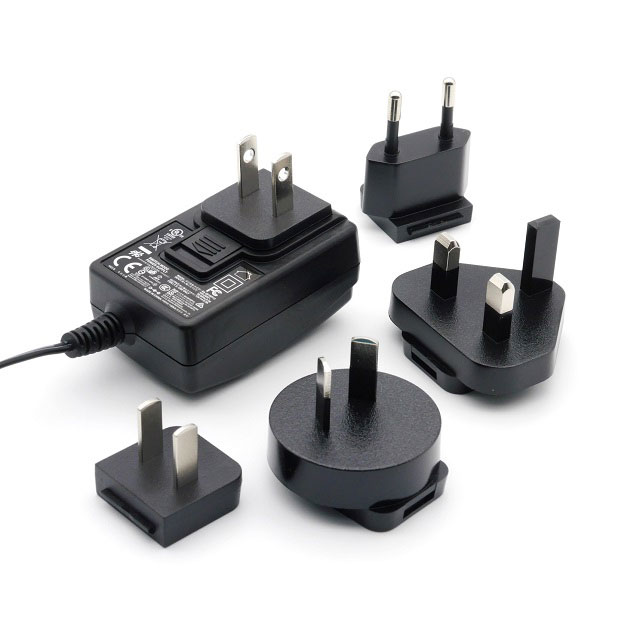

AC/DC DSKTP/WALL MT ADAPT 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6A-061WP12-002
ActiveENG ELECTRIC CO., LTD
AC/DC DSKTP/WALL MT ADAPT 12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6A-061WP12-002 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, CE, UL, CB, CCC, TUV |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop, Wall Mount |
| Input Connector | Multi-Blade (Included) |
| Input Type | Multi-Blade (Included) |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension [x] | 2.52 in |
| Size / Dimension [x] | 64 mm |
| Size / Dimension [y] | 1.59 " |
| Size / Dimension [y] | 40.5 mm |
| Size / Dimension [z] | 30 mm |
| Size / Dimension [z] | 1.18 in |
| Standard Number | 60950-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.73 | |
| 10 | $ 14.83 | |||
| 180 | $ 12.81 | |||
| 540 | $ 11.62 | |||
Description
General part information
6A-061WP12-002
12V 6 W AC/DC External Desktop, Wall Mount (Class II) Adapter Multi-Blade (Included) Input
