TS7321FK
ActiveTagore Technology
IC RF SWITCH SPDT 6GHZ 16QFN
Deep-Dive with AI
Search across all available documentation for this part.
TS7321FK
ActiveTagore Technology
IC RF SWITCH SPDT 6GHZ 16QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TS7321FK |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 10 MHz |
| IIP3 | 73 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.35 dB |
| Isolation | 45 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 44 dBm |

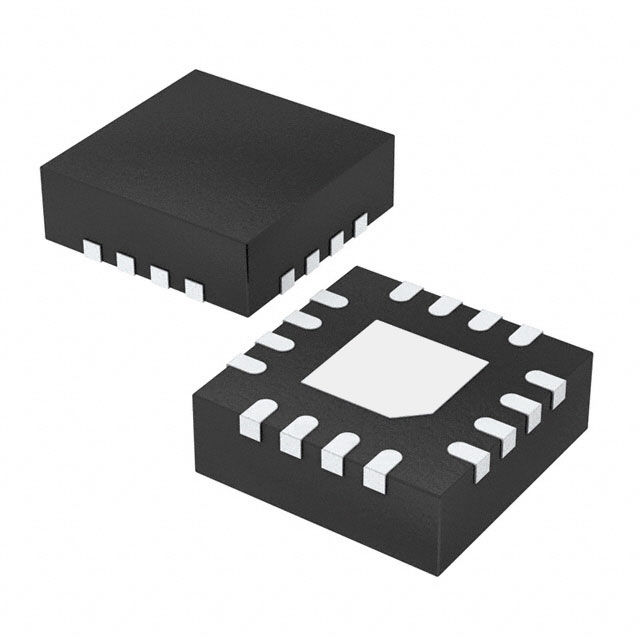

| Package / Case | 16-VFQFN Exposed Pad |
| RF Type | LTE, Cellular |
| Supplier Device Package | 16-QFN (3x3) |
| Test Frequency | 800 MHz |
| Topology | Reflective |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 13.29 | |
Description
General part information
TS7321FK
RF Switch IC Cellular, LTE SPDT 50Ohm 16-QFN (3x3)
Documents
Technical documentation and resources
No documents available
