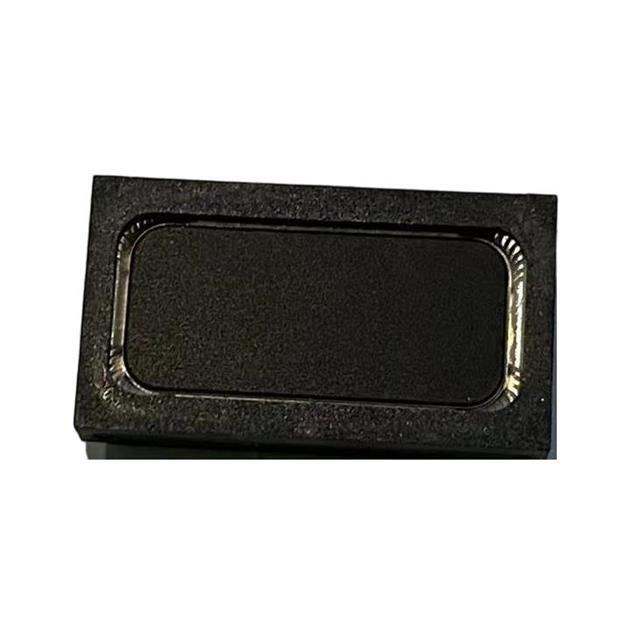

OWS-142550TA-4
ActiveOle Wolff Electronics Inc
SPEAKER 4OHM 2W TOP PORT 103DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OWS-142550TA-4
ActiveOle Wolff Electronics Inc
SPEAKER 4OHM 2W TOP PORT 103DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OWS-142550TA-4 |
|---|---|
| Efficiency - dBA | 103 dBA |
| Efficiency - Testing | 2W/10cm |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 430 Hz |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 100 Hz |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Impedance | 4 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material - Cone [custom] | Plastic |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 2.2 W |
| Power - Rated | 2 W |
| Shape | Rectangular |
| Size / Dimension [x] | 0.551 in |
| Size / Dimension [x] | 14 mm |
| Size / Dimension [y] | 0.984 in |
| Size / Dimension [y] | 25 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | IoT Speaker |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.69 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.27 | |||
| 40 | $ 1.22 | |||
| 80 | $ 1.14 | |||
| 230 | $ 1.04 | |||
| 440 | $ 0.98 | |||
| 945 | $ 0.92 | |||
| 4900 | $ 0.86 | |||
Description
General part information
OWS-142550TA-4
4 Ohms IoT Speaker Speaker 2 W 100 Hz ~ 20 kHz Top Rectangular
