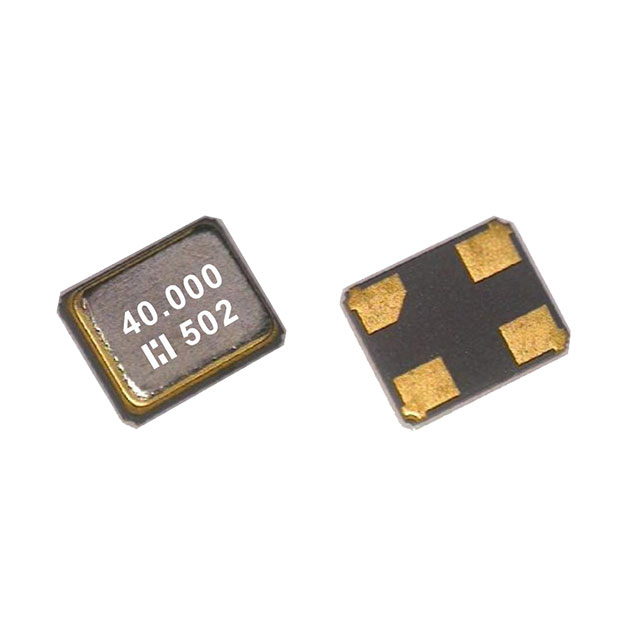

E2SB40E000108E
ActiveHosonic Electronic Co., Ltd
XTAL 2520 40MHZ, 6PF/7/15/-40+10
Deep-Dive with AI
Search across all available documentation for this part.
E2SB40E000108E
ActiveHosonic Electronic Co., Ltd
XTAL 2520 40MHZ, 6PF/7/15/-40+10
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | E2SB40E000108E |
|---|---|
| ESR (Equivalent Series Resistance) | 20 Ohms |
| Frequency | 40 MHz |
| Frequency Stability | 15 ppm |
| Frequency Tolerance | 7 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 6 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 3000 | $ 0.24 | ||
| 6000 | $ 0.23 | |||
| 15000 | $ 0.23 | |||
Description
General part information
E2SB40E000108E
40 MHz ±7ppm Crystal 6pF 20 Ohms 4-SMD, No Lead
