19040352
ActiveCML INNOVATIVE TECHNOLOGIES
LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, YELLOW, 24 VDC, 8 MM, 20 MA, 32 MCD, IP40
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19040352
ActiveCML INNOVATIVE TECHNOLOGIES
LED PANEL MOUNT INDICATOR, SATIN CHROME BEZEL, YELLOW, 24 VDC, 8 MM, 20 MA, 32 MCD, IP40
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19040352 |
|---|---|
| Current | 22 mA |
| Ingress Protection | IP67 |
| Lens Color | Yellow |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 44 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect |
| Termination Style | 0.354 in |
| Termination Style | 9 mm |
| Type | LED |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19040352

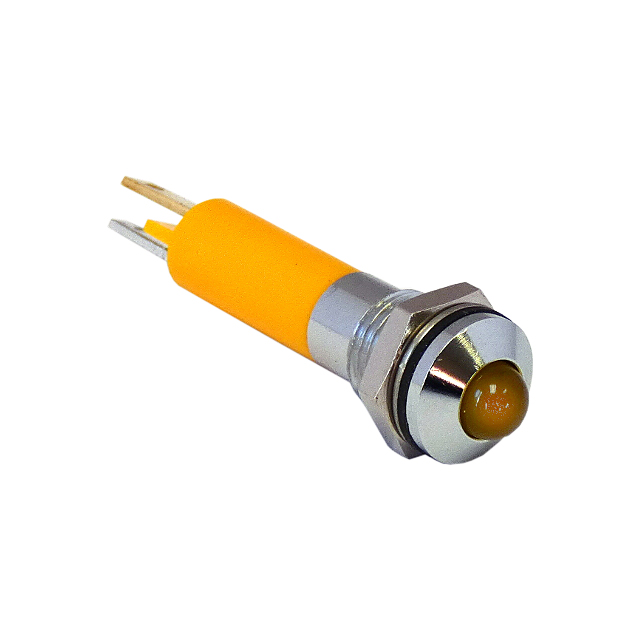

The 19040352 is a yellow panel mount LED Indicator made of high quality satin chrome bezel and prominent (interior) bezel with resistor IP67. The connection is usually by Faston tab terminals 2 x 0.5mm. It is suitable for use with the crimp connectors.
Documents
Technical documentation and resources
