Technical Specifications
Parameters and characteristics for this part
| Specification | BQ20Z75DBT-V180 |
|---|---|
| Battery Chemistry | Lithium Ion/Polymer |
| Fault Protection | Over Temperature, Over/Under Voltage, Short Circuit, Over Current |
| Function | Multi-Function Controller |
| Interface | SMBus |
| Mounting Type | Surface Mount |
| Number of Cells [Max] | 4 |
| Number of Cells [Min] | 2 cells |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 38-TFSOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [custom] | 0.173 in |
| Supplier Device Package | 38-TSSOP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 21 | $ 14.53 | |
| Tube | 1 | $ 19.19 | ||
| 10 | $ 17.64 | |||
| 50 | $ 16.91 | |||
Description
General part information
BQ20Z75DBT-V180

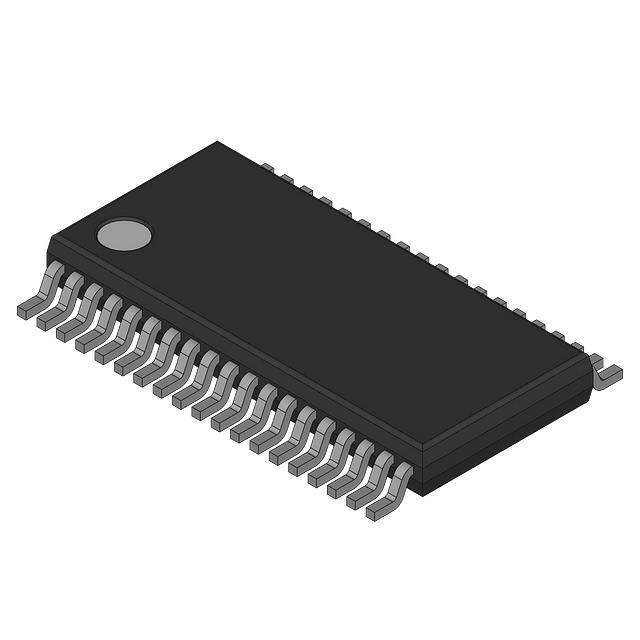

Battery Multi-Function Controller IC Lithium Ion/Polymer 38-TSSOP
Documents
Technical documentation and resources
No documents available
