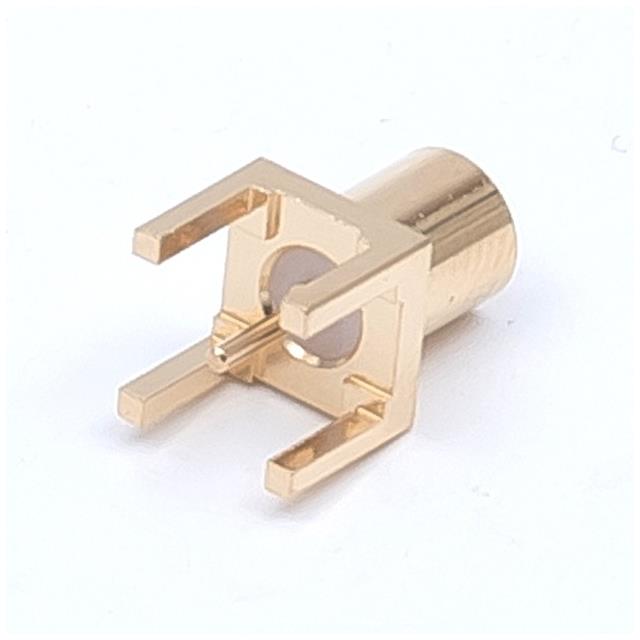

MCX-R-PCB(75 OHM)
ActiveTo-Conne Co., Ltd. (TYC)
MCX-R-PCB(75OHM) MCX RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCX-R-PCB(75 OHM)
ActiveTo-Conne Co., Ltd. (TYC)
MCX-R-PCB(75OHM) MCX RECEPTACLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCX-R-PCB(75 OHM) |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 5.21 | |
| 10 | $ 4.69 | |||
| 25 | $ 4.45 | |||
| 50 | $ 4.23 | |||
Description
General part information
MCX-R-PCB(75 OHM)
MCX Connector Jack, Female Socket 75 Ohms Through Hole Solder
