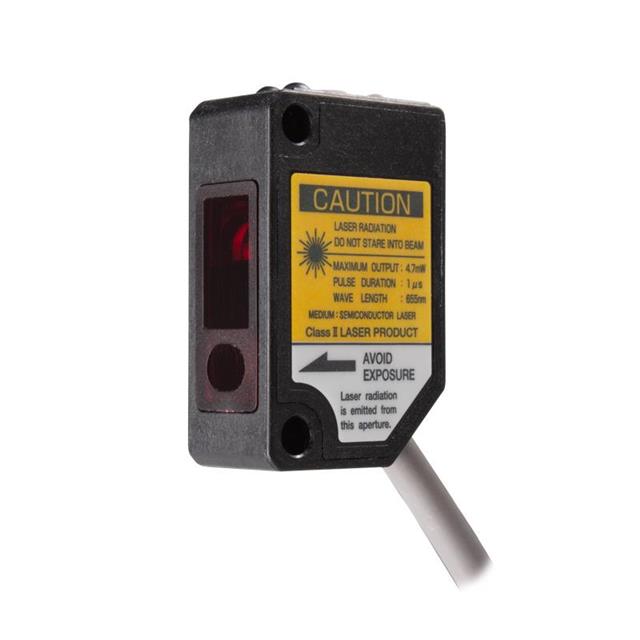

BGS-ZL10N
ActiveOptex FA
BGS SENSOR LASER 5-100MM NPN 2M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BGS-ZL10N
ActiveOptex FA
BGS SENSOR LASER 5-100MM NPN 2M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BGS-ZL10N |
|---|---|
| Adjustment Type | Adjustable, 4-Turn Potentiometer |
| Cable Length | 78.74 in |
| Cable Length | 2 m |
| Connection Method | Cable |
| Ingress Protection | IP67 |
| Light Source | RED (650nm) |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -10 °C |
| Output Configuration | NPN - Open Collector, Light-ON\Dark-ON |
| Response Time | 250 µs |
| Sensing Distance [Max] | 100 mm |
| Sensing Distance [Max] | 3.937 " |
| Sensing Distance [Min] | 5 mm |
| Sensing Distance [Min] | 0.197 in |
| Sensing Method | Background Suppression |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 162.00 | |
Description
General part information
BGS-ZL10N
Background Suppression Optical Sensor 0.197" ~ 3.937" (5mm ~ 100mm) NPN - Open Collector, Light-ON\Dark-ON
