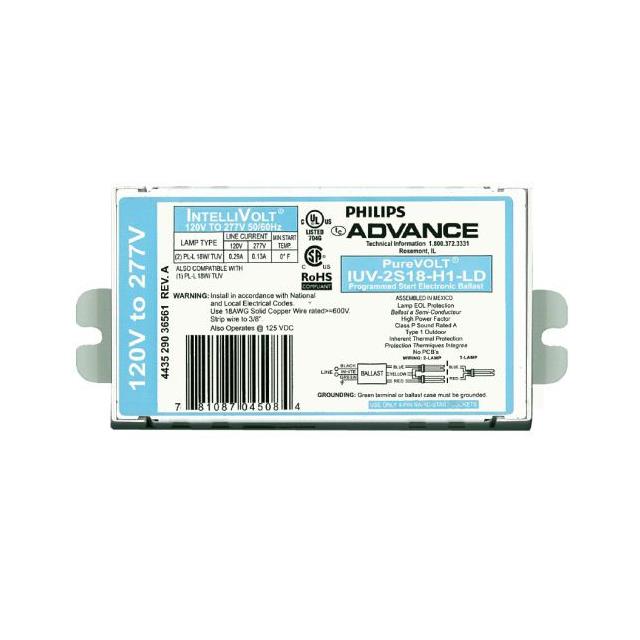

IUV-2S18-H1LD
ActivePhilips Advance
ADVANCE 120-277V POWER SUPPLY (I
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IUV-2S18-H1LD
ActivePhilips Advance
ADVANCE 120-277V POWER SUPPLY (I
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IUV-2S18-H1LD |
|---|---|
| Mounting Type | Surface Mount |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 24.9 mm |
| Type | CCFL and UV Lamps |
| Voltage - Input [Max] | 277 V |
| Voltage - Input [Min] | 120 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IUV-2S18-H1LD
CCFL and UV Lamps Inverter 120 ~ 277V Input Output 4.60" L x 2.40" W x 0.98" H (116.8mm x 61mm x 24.9mm) Surface Mount
Documents
Technical documentation and resources
