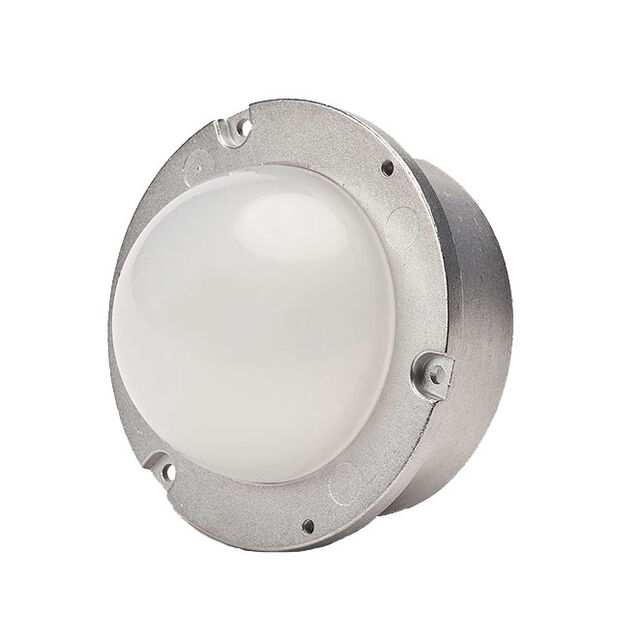

NELM-30/40/00-35-90-D
ActiveNew Energy
LED MOD WARM WHITE ROUND 3500K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NELM-30/40/00-35-90-D |
|---|---|
| CCT (K) | 3500 K |
| Color | White, Warm |
| Configuration | Plug and Play, Round |
| CRI (Color Rendering Index) | 90 |
| Current - Max | 750 mA, 1.1 A |
| Height [z] | 60.3 mm |
| Lens Type | Domed |
| Light Emitting Surface (LES) [diameter] | 61.3 mm |
| Luminous Flux @ Current/Temperature | 3012 lm, 4008 lm |
| Size / Dimension [diameter] | 88.2 mm |
| Temperature - Test | 55 °C |
| Type | LED Module |
| Viewing Angle | 102 ° |
| Voltage - Forward (Vf) (Typ) | 33.7 V, 34.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.45 | |
| 10 | $ 45.20 | |||
| 25 | $ 43.31 | |||
| 100 | $ 39.25 | |||
| 250 | $ 37.90 | |||
Description
General part information
NELM-30/40/00-35-90-D
LED Lighting COBs Engines Modules LED Module - White, Warm Round, Plug and Play
