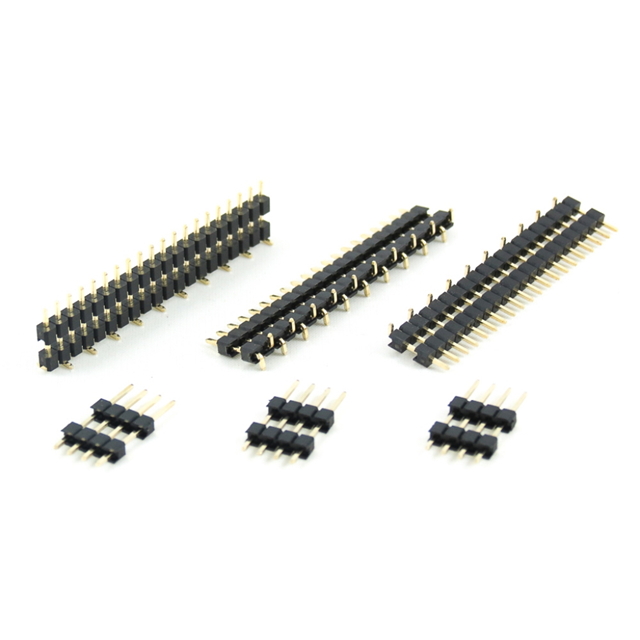

2012-1X18G00S/083/045R/I24
ActiveOupiin
PIN HEADER, SINGLE ROW, 18 PIN,
Deep-Dive with AI
Search across all available documentation for this part.
2012-1X18G00S/083/045R/I24
ActiveOupiin
PIN HEADER, SINGLE ROW, 18 PIN,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2012-1X18G00S/083/045R/I24 |
|---|---|
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | Flash |
| Length - Post (Mating) [x] | 4.5 mm |
| Length - Post (Mating) [x] | 0.177 in |
| Length - Tail [x] | 0.327 in |
| Length - Tail [x] | 8.3 mm |
| Mounting Type | Through Hole |
| Number of Positions | 18 |
| Number of Rows | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.73 | |
| 1000 | $ 2.27 | |||
| 2000 | $ 2.09 | |||
| 3000 | $ 1.82 | |||
| 4000 | $ 1.09 | |||
Description
General part information
2012-1X18G00S/083/045R/I24
18 Position Header Spacer Connector Gold Through Hole
Documents
Technical documentation and resources
No documents available
