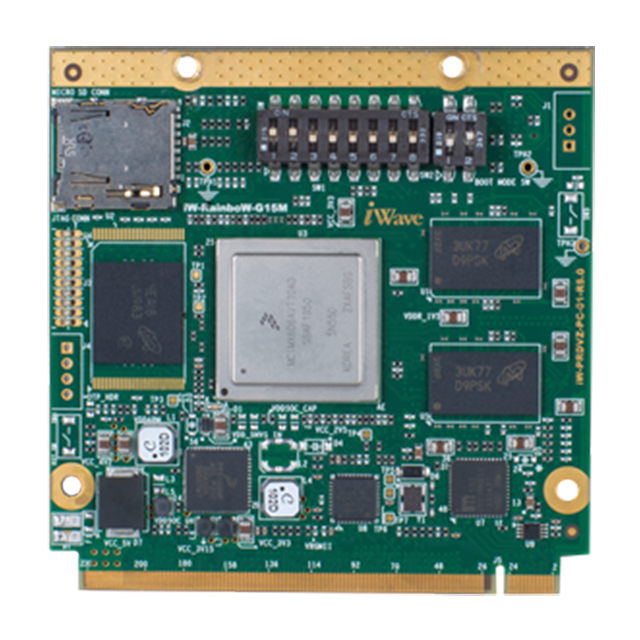

IW-G15M-Q704-3D001G-E008G-BIC
ActiveiWave Global
SBC 1GHZ 4 CORE 1GB/8GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IW-G15M-Q704-3D001G-E008G-BIC
ActiveiWave Global
SBC 1GHZ 4 CORE 1GB/8GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IW-G15M-Q704-3D001G-E008G-BIC |
|---|---|
| Core Processor | ARM® Cortex®-A9 |
| Digital I/O Lines | 8 |
| Ethernet | GbE |
| Expansion Site/Bus | CAN, UART, PWM, AC97 Audio, SPI, I2C |
| Form Factor | Qseven R2.0 |
| Number of Cores | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| RAM Capacity/Installed | 1 GB, 8 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 70.1 mm |
| Size / Dimension [x] | 2.76 in |
| Size / Dimension [y] | 70.1 mm |
| Size / Dimension [y] | 2.76 in |
| Speed | 1 GHz |
| Storage Interface | SATA, eMMC, PCIe, microSD |
| USB | USB OTG (1), USB 2.0 (4) |
| Video Outputs | HDMI, LVDS |
| Watchdog Timer | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IW-G15M-Q704-3D001G-E008G-BIC
Single Board Computer 1GHz 4 Core 1GB/8GB RAM ARM® Cortex®-A9
Documents
Technical documentation and resources
