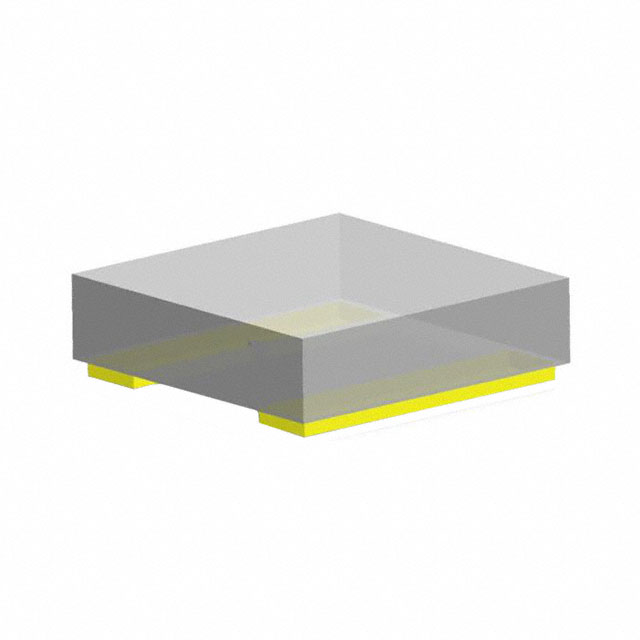

GUVC-S40GD
ObsoleteGenicom Co., Ltd.
SENSOR PHOTODIODE 220-280NM 0404
Deep-Dive with AI
Search across all available documentation for this part.
GUVC-S40GD
ObsoleteGenicom Co., Ltd.
SENSOR PHOTODIODE 220-280NM 0404
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GUVC-S40GD |
|---|---|
| Active Area | 0.83 mm² |
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) | 1 nA |
| Diode Type | Schottky |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 0404 |
| Responsivity @ nm | 0.06 A/W |
| Spectral Range [Max] [custom] | 280 nm |
| Spectral Range [Min] [custom] | 220 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
GUVC-S40GD
Photodiode 0404 (1010 Metric)
Documents
Technical documentation and resources
No documents available
