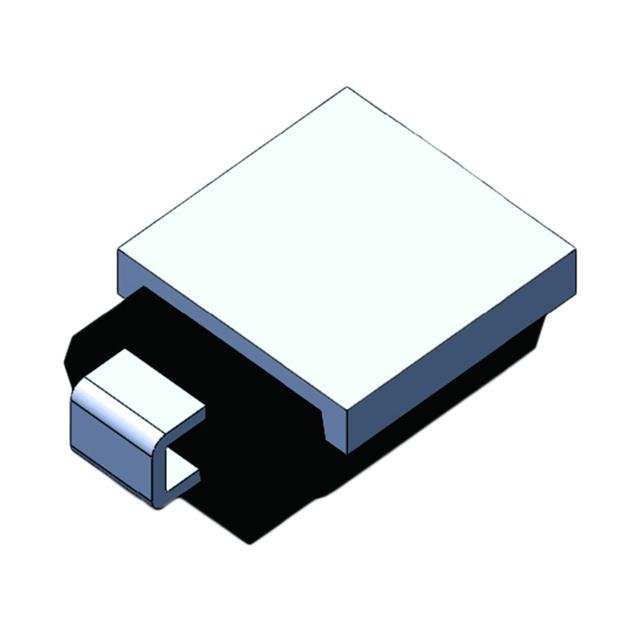

SM6S30A-Q1
ActiveANBON SEMICONDUCTOR (INT'L) LIMITED
TVS DIODE 30VWM 48.4VC DO218AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM6S30A-Q1
ActiveANBON SEMICONDUCTOR (INT'L) LIMITED
TVS DIODE 30VWM 48.4VC DO218AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM6S30A-Q1 |
|---|---|
| Current - Peak Pulse (10/1000µs) | 95 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | DO-218AB |
| Power - Peak Pulse | 4600 W |
| Power - Peak Pulse | 4.6 kW |
| Power Line Protection | False |
| Supplier Device Package | DO-218AB |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 33.3 V |
| Voltage - Clamping (Max) @ Ipp | 48.4 V |
| Voltage - Reverse Standoff (Typ) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.20 | |
| 10 | $ 1.41 | |||
| 100 | $ 0.96 | |||
| Digi-Reel® | 1 | $ 2.20 | ||
| 10 | $ 1.41 | |||
| 100 | $ 0.96 | |||
| Tape & Reel (TR) | 750 | $ 0.72 | ||
| 1500 | $ 0.67 | |||
| 2250 | $ 0.64 | |||
| 3750 | $ 0.61 | |||
| 5250 | $ 0.60 | |||
Description
General part information
SM6S30A-Q1
48.4V Clamp 95A Ipp Tvs Diode Surface Mount DO-218AB
