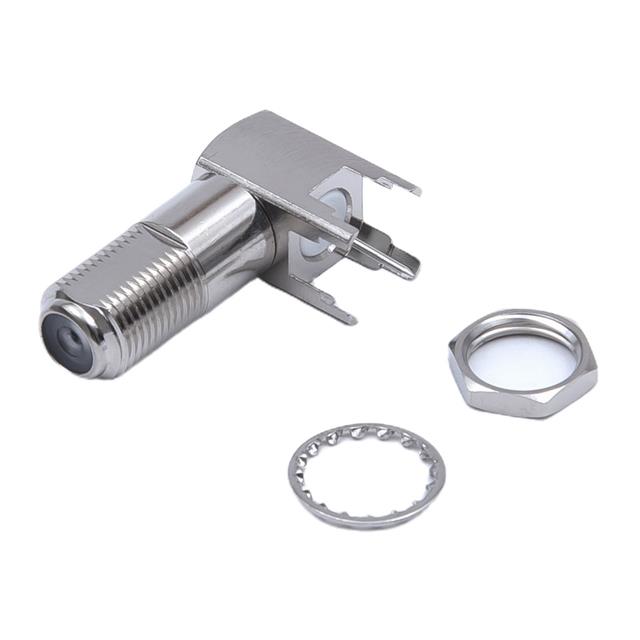

F-224LR-CA
ActiveTo-Conne Co., Ltd. (TYC)
F-224LR-CA F RIGHT ANGLE RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
F-224LR-CA
ActiveTo-Conne Co., Ltd. (TYC)
F-224LR-CA F RIGHT ANGLE RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | F-224LR-CA |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder |
| Frequency - Max [Max] | 3 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 2.71 | |
| 10 | $ 2.44 | |||
| 25 | $ 2.32 | |||
| 50 | $ 2.20 | |||
Description
General part information
F-224LR-CA
F Type Connector Receptacle, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
