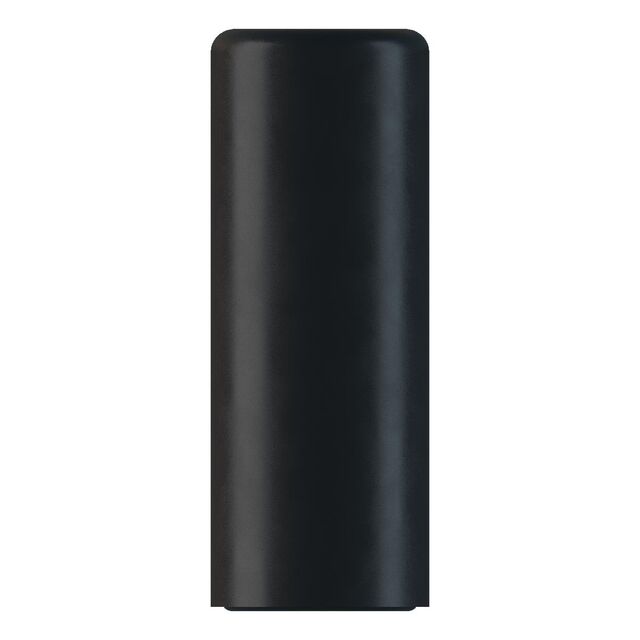

M1600HCT-P-SMA/100-00050-01
ActiveMaxtena Inc
HELICAL IRIDIUM/GPS GLONASS CERT
Deep-Dive with AI
Search across all available documentation for this part.
M1600HCT-P-SMA/100-00050-01
ActiveMaxtena Inc
HELICAL IRIDIUM/GPS GLONASS CERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1600HCT-P-SMA/100-00050-01 |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | GLONASS, Iridium™, GPS |
| Frequency (Center/Band) | 1.602 GHz, 1.621 GHz, 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.626 GHz |
| Frequency Range [Min] | 1.616 GHz |
| Gain | 0 dBi, 2.8 dBi, -3 dBic |
| Height (Max) [Max] | 49 mm |
| Height (Max) [Max] | 1.929 " |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | SMA |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 64.00 | |
| 10 | $ 60.79 | |||
| 25 | $ 59.19 | |||
Description
General part information
M1600HCT-P-SMA/100-00050-01
RF ANTENNA GLONASS, GPS, Iridium™ Whip, Straight SMA Connector Mount
