PD250GB80
ActiveSanRex Corporation
THYRISTOR MODULE 800V 250A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD250GB80
ActiveSanRex Corporation
THYRISTOR MODULE 800V 250A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PD250GB80 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] [x] | 100 mA |
| Current - Hold (Ih) (Max) [Max] | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Max] | 5500 A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) [Min] | 5000 A |
| Current - On State (It (AV)) (Max) [Max] | 250 A |
| Current - On State (It (RMS)) (Max) | 390 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Structure | Series Connection - SCR/Diode |
| Voltage - Off State | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 3 | $ 205.92 | |
| 10 | $ 192.87 | |||
| 25 | $ 185.62 | |||
Description
General part information

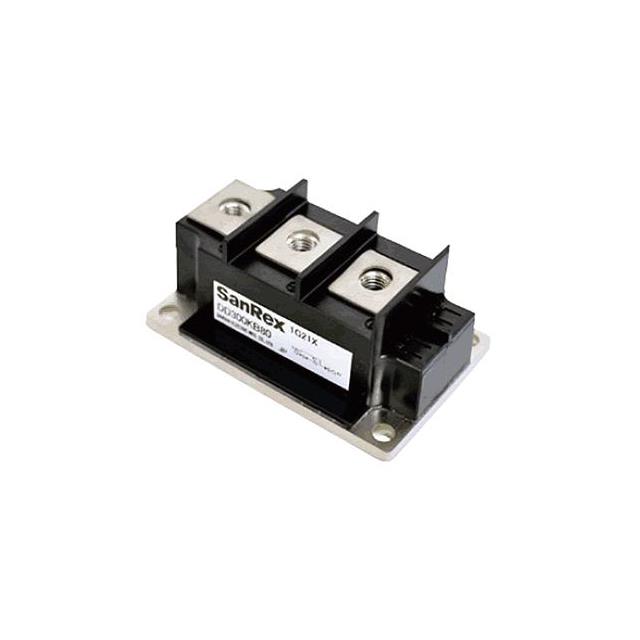

PD250GB80
SCR Module 800 V 390 A Series Connection - SCR/Diode Chassis Mount Module
