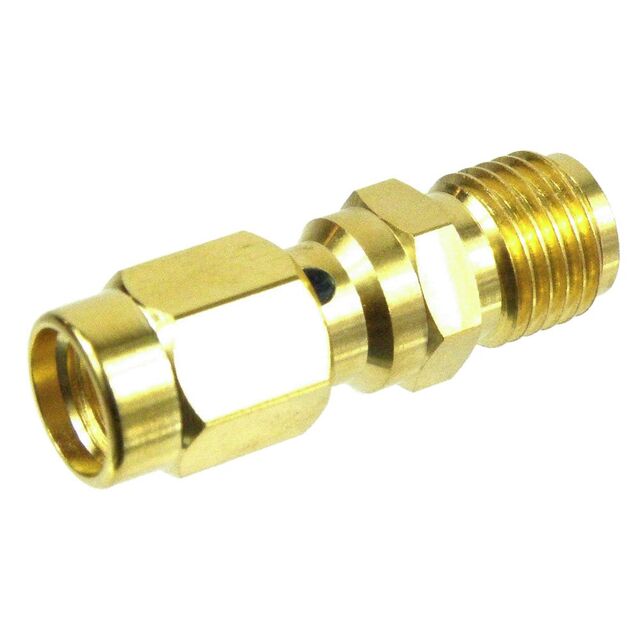

SM4891
ActiveFairview Microwave
COAX ADAPT SMA TO SSMA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SM4891
ActiveFairview Microwave
COAX ADAPT SMA TO SSMA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SM4891 |
|---|---|
| Adapter Series | SMA to SSMA |
| Adapter Type | Plug to Jack |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Male Pin, SSMA Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 176.23 | |
Description
General part information
SM4891
Adapter Coaxial Connector SMA Jack, Female Socket To SSMA Plug, Male Pin 50 Ohms
