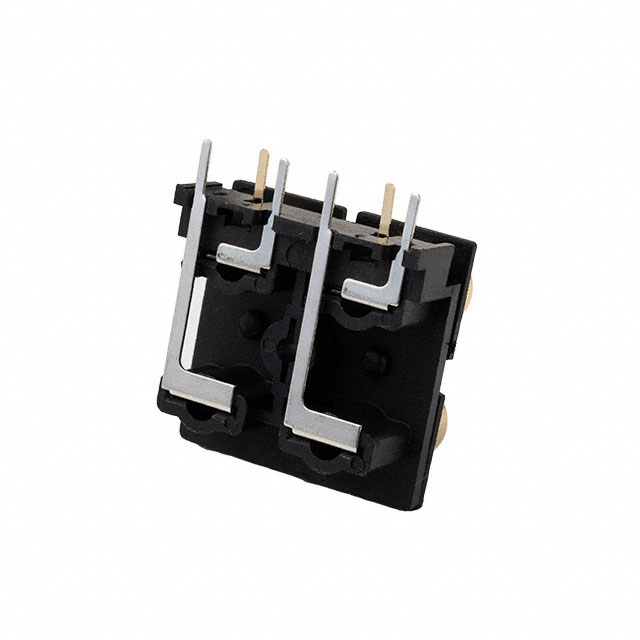

RH1018160GNL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RH1018160GNL
ActiveRDI, Inc.
RCA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RH1018160GNL |
|---|---|
| Actual Diameter [diameter] | 3.2 mm |
| Actual Diameter [diameter] | 0.126 in |
| Body Color | Gold |
| Body Material | Brass |
| Connector Type | Phone Jack, Quad |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Gold |
| Gender | Female |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | White, Red |
| Internal Switch(s) | False |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RH1018160GNL
3.20mm ID, 9.00mm OD (RCA) Phone Jack, Quad Stereo (3 Conductor, TRS) Connector Solder
