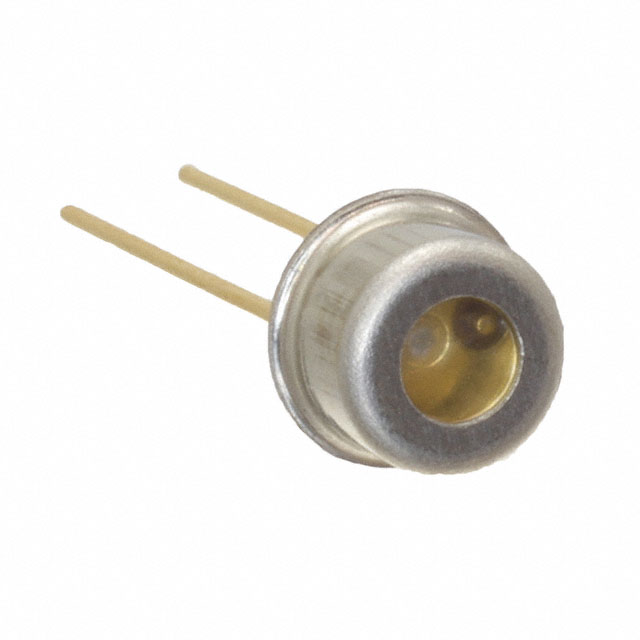

GVGR-T11GD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 300-510NM TO46
Deep-Dive with AI
Search across all available documentation for this part.
GVGR-T11GD
ActiveGenicom Co., Ltd.
SENSOR PHOTODIODE 300-510NM TO46
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GVGR-T11GD |
|---|---|
| Color - Enhanced | Ultraviolet (UV) |
| Current - Dark (Typ) | 1 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | TO-46-2 Metal Can |
| Responsivity @ nm | 0.026 A/W |
| Spectral Range [Max] | 510 nm |
| Spectral Range [Min] | 300 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.30 | |
| 10 | $ 11.32 | |||
| 25 | $ 10.73 | |||
| 100 | $ 9.24 | |||
| 500 | $ 8.64 | |||
| 1000 | $ 8.19 | |||
Description
General part information
GVGR-T11GD
Photodiode TO-46-2 Metal Can
Documents
Technical documentation and resources
No documents available
