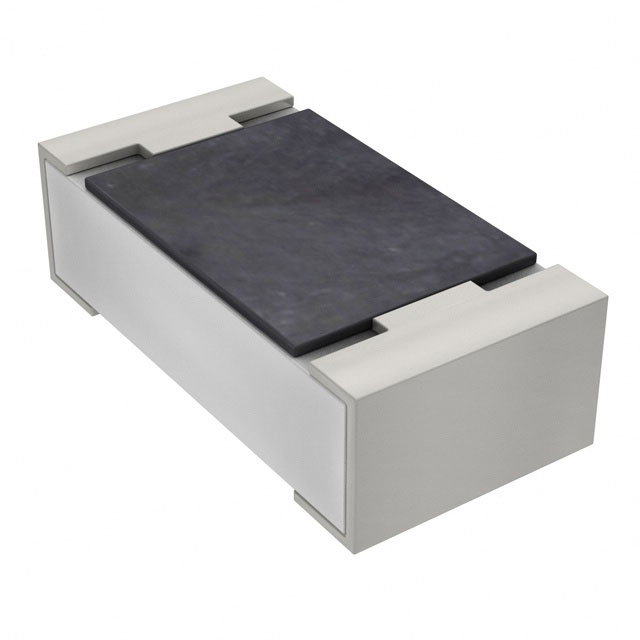

RP0603FRD071KL
ActiveYAGEO
RES 1K OHM 1% 1/10W 0603
Deep-Dive with AI
Search across all available documentation for this part.
RP0603FRD071KL
ActiveYAGEO
RES 1K OHM 1% 1/10W 0603
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RP0603FRD071KL |
|---|---|
| Composition | Thin Film |
| Features | Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Resistance | 1000 Ohms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.13 | |
| 10 | $ 0.10 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.13 | ||
| 10 | $ 0.10 | |||
| 50 | $ 0.08 | |||
| 100 | $ 0.07 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.05 | |||
| Tape & Reel (TR) | 5000 | $ 0.03 | ||
Description
General part information
RP0603FRD071KL
1 kOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant Thin Film
