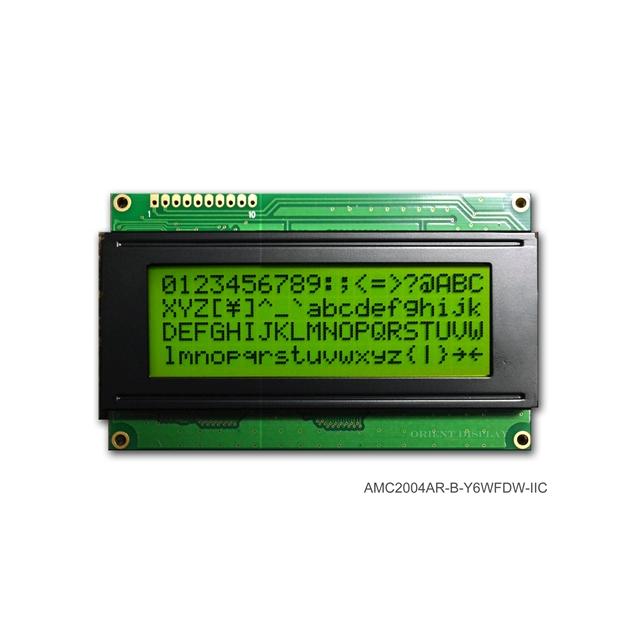

AMC2004AR-B-Y6WFDY-I2C
ActiveOrient Display
LCD COB CHAR 20X4 Y/G TRANSF I2C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMC2004AR-B-Y6WFDY-I2C
ActiveOrient Display
LCD COB CHAR 20X4 Y/G TRANSF I2C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMC2004AR-B-Y6WFDY-I2C |
|---|---|
| Background Color | Yellow/Green |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Controller Type | AC780S |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.55 mm |
| Dot Size [y] | 0.55 mm |
| Interface | I2C |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 98 mm |
| Outline L x W x H [y] | 60 mm |
| Outline L x W x H [z] | 13.5 mm |
| Text Color | Dark Blue |
| Viewing Area [x] | 76 mm |
| Viewing Area [y] | 25.2 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.51 | |
| 10 | $ 15.45 | |||
| 100 | $ 13.09 | |||
| 500 | $ 12.07 | |||
Description
General part information
AMC2004AR-B-Y6WFDY-I2C
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green I2C 98.00mm x 60.00mm x 13.50mm
