MTE8601N1
ActiveMarktech Optoelectronics
850NM INFRARED EMITTER IN A 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTE8601N1
ActiveMarktech Optoelectronics
850NM INFRARED EMITTER IN A 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTE8601N1 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Orientation | Top View |
| Package / Case | Radial |
| Type | Infrared (IR) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 1.45 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.90 | |
| 10 | $ 2.76 | |||
| 100 | $ 2.26 | |||
| 500 | $ 1.90 | |||
| 1000 | $ 1.75 | |||
| 2000 | $ 1.67 | |||
| 5000 | $ 1.64 | |||
Description
General part information
MTE8601N1

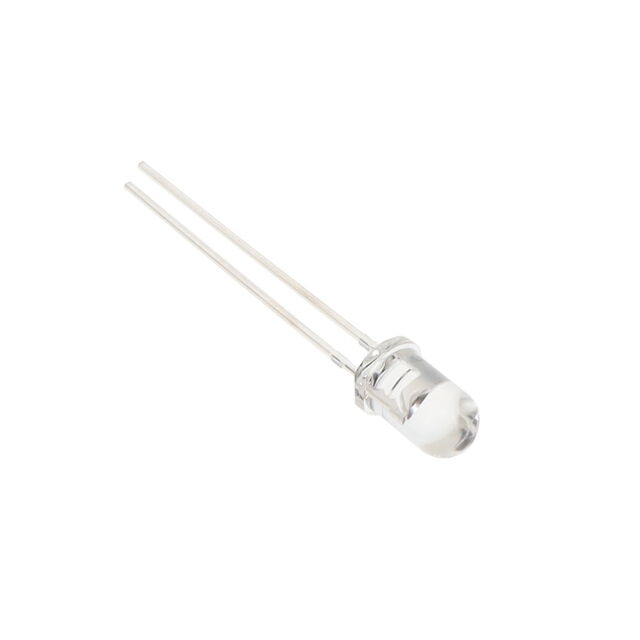

Infrared (IR) Emitter 850nm 1.45V 100mA 30° Radial
