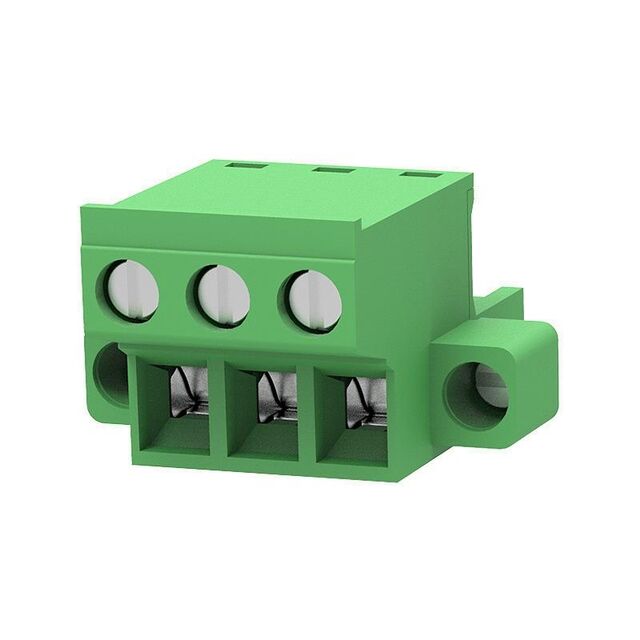

2EDGKCM-5.0-03P-14-00L(H)
ActiveDegson
TERMINAL BLOCKS, MALE PLUGS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2EDGKCM-5.0-03P-14-00L(H)
ActiveDegson
TERMINAL BLOCKS, MALE PLUGS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2EDGKCM-5.0-03P-14-00L(H) |
|---|---|
| Color | Green |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Tin |
| Current - IEC | 20 A |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Screw Size | M2.5 |
| Termination Style | Screw |
| Torque - Screw | 4.4 Lb-In |
| Torque - Screw | 0.5 Nm |
| Type | Plug, Female Sockets |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
| Wire Strip Length | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 2.12 | |
| 10 | $ 2.10 | |||
| 100 | $ 2.08 | |||
| 500 | $ 2.06 | |||
| 1000 | $ 2.04 | |||
Description
General part information
2EDGKCM-5.0-03P-14-00L(H)
3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) Free Hanging (In-Line)
