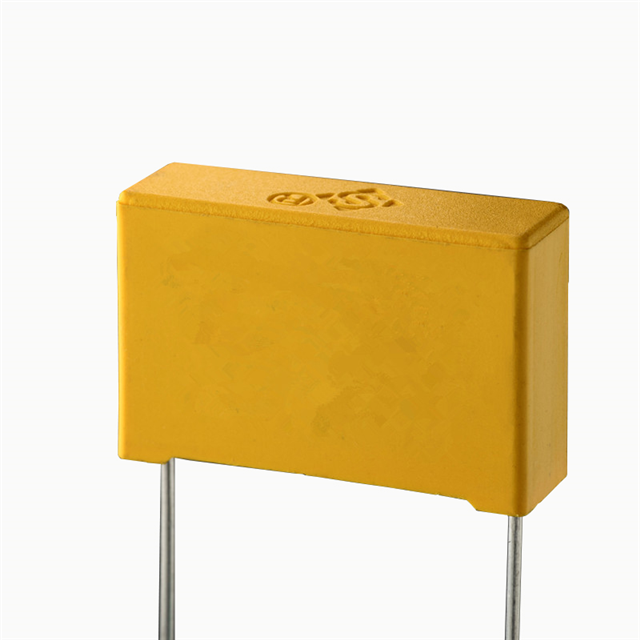

X2P2104KN1B0130120060ES0
ActiveSongtian Electronics Co., Ltd
X2 275VAC 0.1UF 10% P=10MM W13*H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X2P2104KN1B0130120060ES0
ActiveSongtian Electronics Co., Ltd
X2 275VAC 0.1UF 10% P=10MM W13*H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X2P2104KN1B0130120060ES0 |
|---|---|
| Applications | EMI, RFI Suppression |
| Capacitance | 100000 pF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Lead Spacing | 0.394 in |
| Lead Spacing | 10 mm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Ratings | X2 |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 275 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.69 | |
| 10 | $ 1.75 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.25 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 0.99 | |||
| 2500 | $ 0.92 | |||
| 5000 | $ 0.88 | |||
Description
General part information
X2P2104KN1B0130120060ES0
0.1 µF Film Capacitor 275V Polypropylene (PP), Metallized Radial
