T2871N80TOHXPSA1
ActiveInfineon Technologies
8000 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 172 MM DIA AND A HEIGHT OF 35 MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2871N80TOHXPSA1
ActiveInfineon Technologies
8000 V ELECTRICAL TRIGGERED PHASE CONTROL THYRISTOR DISC ASSEMBLED IN A HERMETIC SEALED CERAMIC HOUSING WITH A 172 MM DIA AND A HEIGHT OF 35 MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | T2871N80TOHXPSA1 |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 350 mA |
| Current - Hold (Ih) (Max) [Max] | 350 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 93000 A |
| Current - On State (It (AV)) (Max) [Max] | 3660 A |
| Current - On State (It (RMS)) (Max) [Max] | 4120 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes | 1 SCR |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-200AF |
| Structure | Single |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 8 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4529.64 | |
Description
General part information
T2871N80TOHXPSA1

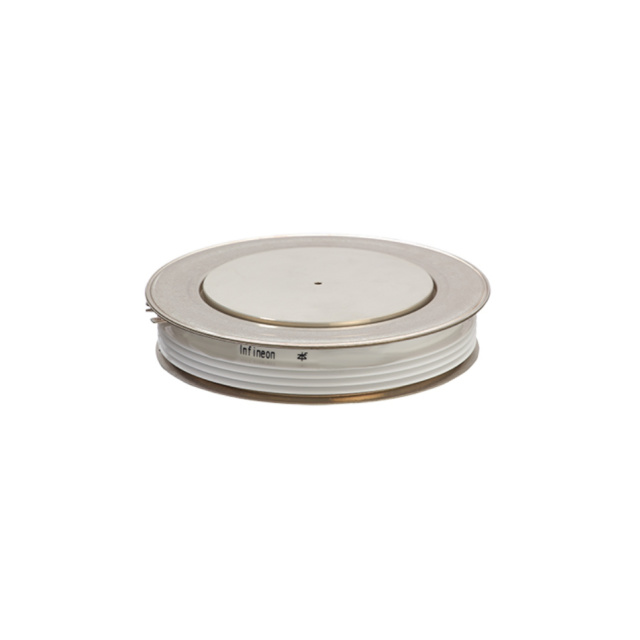

The T2871NPhase Control Thyristor discsare assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 172mm and a height of 35mm.
