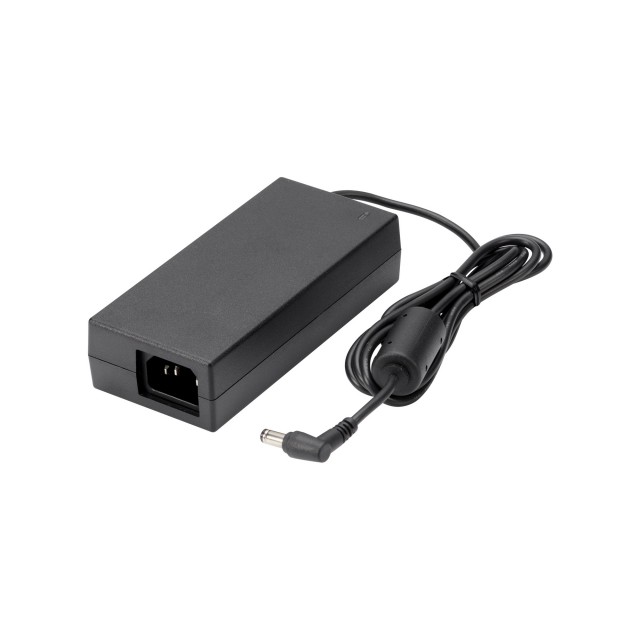

FSP060M-DAA3
ActiveFSP Technology Inc.
AC DC, 24V, 60W MEDICAL ADAPTER,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSP060M-DAA3
ActiveFSP Technology Inc.
AC DC, 24V, 60W MEDICAL ADAPTER,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSP060M-DAA3 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, CE, TUV |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.5 mm, 5.5 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 60 W |
| Region Utilized | International |
| Size / Dimension [x] | 5.08 in |
| Size / Dimension [x] | 129.1 mm |
| Size / Dimension [y] | 58.6 mm |
| Size / Dimension [y] | 2.31 " |
| Size / Dimension [z] | 31.5 mm |
| Size / Dimension [z] | 1.24 " |
| Standard Number | 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24.04 | |
| 5 | $ 23.33 | |||
| 10 | $ 22.62 | |||
| 25 | $ 21.92 | |||
| 50 | $ 21.21 | |||
| 100 | $ 20.50 | |||
Description
General part information
FSP060M-DAA3
24V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
