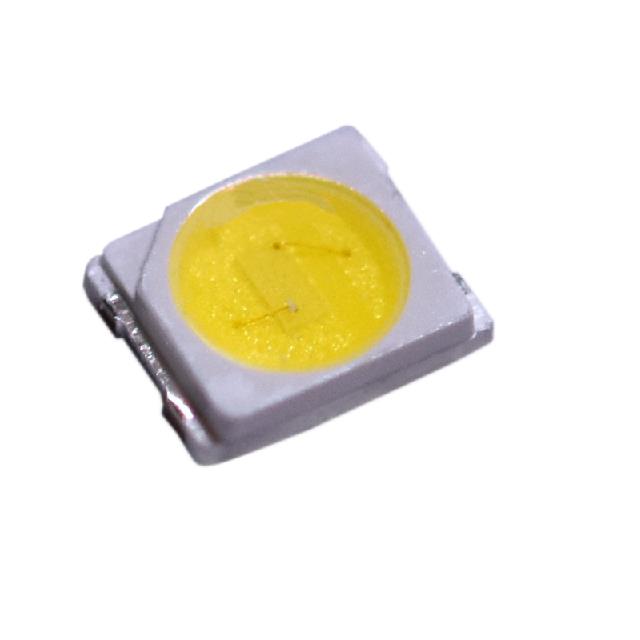

HL3528A-EWW-060MA
ActiveSolidlite
LED WHITE 1411
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HL3528A-EWW-060MA
ActiveSolidlite
LED WHITE 1411
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HL3528A-EWW-060MA |
|---|---|
| Color | White |
| Current - Max [Max] | 90 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 26 lm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Lumens/Watt @ Current - Test | 135 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 1411 |
| Package / Case | 3528 Metric |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 1411 |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 0.39 | |
| 10 | $ 0.32 | |||
| 100 | $ 0.29 | |||
| 500 | $ 0.24 | |||
| 2000 | $ 0.18 | |||
| 20000 | $ 0.15 | |||
Description
General part information
HL3528A-EWW-060MA
LED Lighting - White 3.2V 60mA 120° 1411 (3528 Metric)
