20864-010E-01
ActiveI-PEX

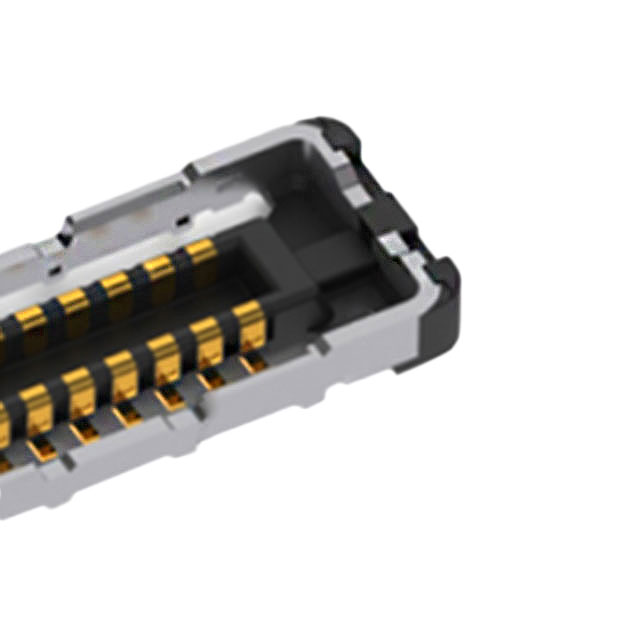

NOVASTACK 35-HDN PLUG 10P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20864-010E-01
ActiveI-PEX
NOVASTACK 35-HDN PLUG 10P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20864-010E-01 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Shielded |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.62 | |
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.11 | |||
| Digi-Reel® | 1 | $ 2.62 | ||
| 10 | $ 2.00 | |||
| 25 | $ 1.80 | |||
| 50 | $ 1.67 | |||
| 100 | $ 1.54 | |||
| 250 | $ 1.40 | |||
| 500 | $ 1.30 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.11 | |||
| Tape & Reel (TR) | 20000 | $ 1.00 | ||
Description
General part information
20864-010E-01
10 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
