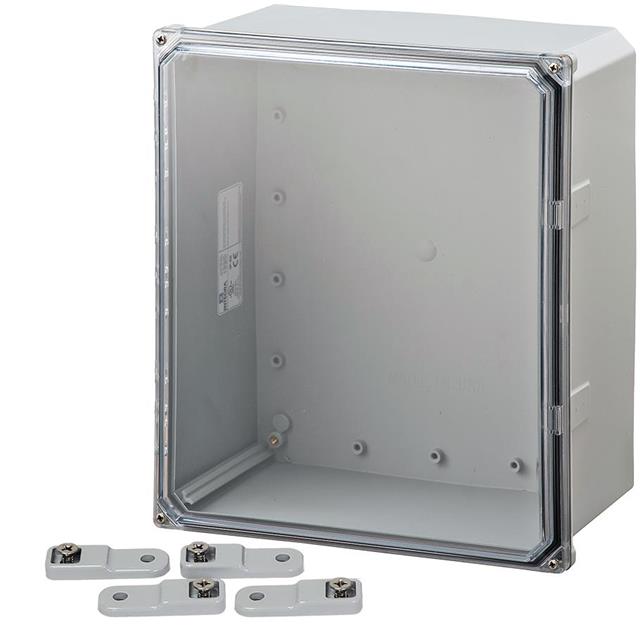

H141206SC
ActiveIntegra Enclosures
ENCLOSURE PC 14.58"L X 12.58"W
Deep-Dive with AI
Search across all available documentation for this part.
H141206SC
ActiveIntegra Enclosures
ENCLOSURE PC 14.58"L X 12.58"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H141206SC |
|---|---|
| Area (L x W) [custom] | 1183 cm² |
| Area (L x W) [custom] | 183 in² |
| Color | Gray |
| Container Type | Enclosure |
| Design | Hinged Door, Lid |
| Height [z] | 7.38 in |
| Height [z] | 187.45 mm |
| Material | Plastic, Polycarbonate (PC) |
| Material Flammability Rating | UL94 5VA |
| Ratings | NEMA 6P, IP66, NEMA 4X, IP68 |
| Size / Dimension [x] | 14.58 " |
| Size / Dimension [x] | 370.33 mm |
| Size / Dimension [y] | 319.53 mm |
| Size / Dimension [y] | 12.58 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 147.71 | |
| 5 | $ 137.86 | |||
| 10 | $ 135.40 | |||
| 25 | $ 132.94 | |||
| 50 | $ 130.97 | |||
Description
General part information
H141206SC
Enclosure Plastic, Polycarbonate (PC) Gray Hinged Door, Lid 14.580" L x 12.580" W (370.33mm x 319.53mm) X 7.380" (187.45mm)
Documents
Technical documentation and resources
No documents available
