9050
ActiveRadial Magnets, Inc.

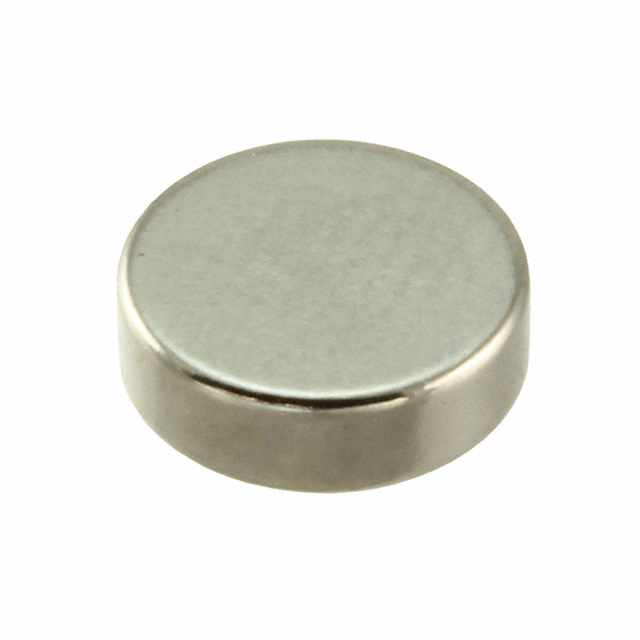

MAGNET 0.315"D X 0.098"THICK CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9050
ActiveRadial Magnets, Inc.
MAGNET 0.315"D X 0.098"THICK CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9050 |
|---|---|
| Finish | NiCuNi |
| Grade | N35SH |
| Magnetization | Diametric |
| Material | Neodymium Iron Boron (NdFeB) |
| Shape | Cylindrical |
| Size [diameter] | 8 mm |
| Size [diameter] | 0.315 " |
| Size [z] | 0.098 in |
| Size [z] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.61 | |
| 1 | $ 0.93 | |||
| 5 | $ 0.78 | |||
| 10 | $ 0.73 | |||
| 25 | $ 0.66 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.40 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.37 | |||
| 500 | $ 0.33 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.45 | |||
| 1000 | $ 0.27 | |||
| 2500 | $ 0.24 | |||
| 5000 | $ 0.38 | |||
| 5000 | $ 0.23 | |||
Description
General part information
9050
Magnet Neodymium Iron Boron (NdFeB) N35SH 0.315" Dia x 0.098" H (8.00mm x 2.50mm)
