NRF24AP1
ObsoleteNordic Semiconductor ASA
IC RF TXRX ISM>1GHZ 24QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NRF24AP1
ObsoleteNordic Semiconductor ASA
IC RF TXRX ISM>1GHZ 24QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NRF24AP1 |
|---|---|
| Current - Receiving | 22 mA |
| Current - Transmitting [Max] | 16 mA |
| Current - Transmitting [Min] | 13 mA |
| Data Rate (Max) | 1 Mbps |
| Frequency | 2.4 GHz |
| Modulation | GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

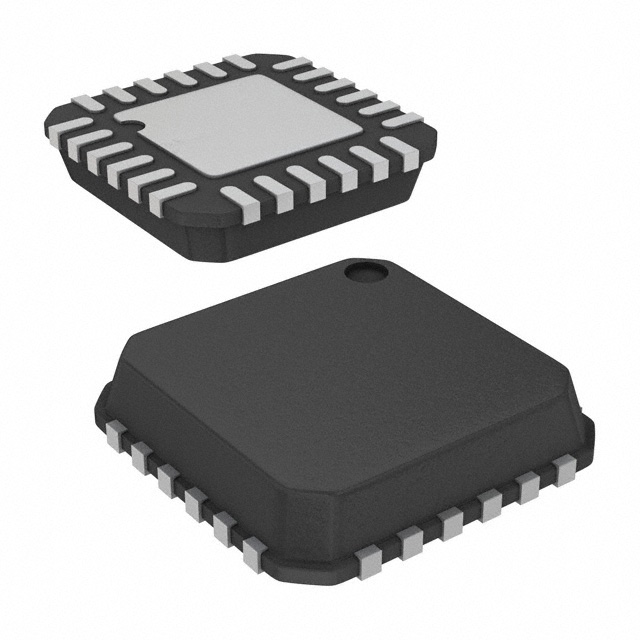

| Package / Case | 24-VQFN Exposed Pad |
| Power - Output | 0 dBm |
| Protocol | ANT™ |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -80 dBm |
| Serial Interfaces | USART |
| Supplier Device Package | 24-QFN (5x5) |
| Type | TxRx Only |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NRF24AP1
IC RF TxRx Only General ISM > 1GHz ANT™ 2.4GHz 24-VQFN Exposed Pad
