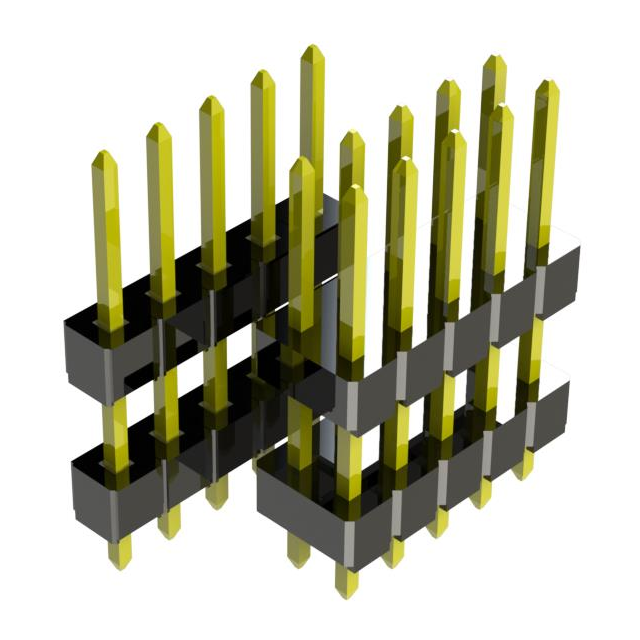

BSTC-240-T-098-12-GT-320-LF
ActiveMajor League Electronics
.079 HEADER
Deep-Dive with AI
Search across all available documentation for this part.
BSTC-240-T-098-12-GT-320-LF
ActiveMajor League Electronics
.079 HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BSTC-240-T-098-12-GT-320-LF |
|---|---|
| Color | Black |
| Contact Finish - Post (Mating) | Gold |
| Contact Finish Thickness - Post (Mating) | 0.25 Ám |
| Contact Finish Thickness - Post (Mating) | 10 Áin |
| Length - Overall Pin | 15.088 mm |
| Length - Overall Pin | 0.594 in |
| Length - Post (Mating) [x] | 0.176 in |
| Length - Post (Mating) [x] | 4.47 mm |
| Length - Stack Height [z] | 0.32 in |
| Length - Stack Height [z] | 8.128 mm |
| Length - Tail [x] | 0.098 in |
| Length - Tail [x] | 2.489 mm |
| Mounting Type | Through Hole |
| Number of Positions | 120 |
| Number of Rows | 3 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 5.63 | |
Description
General part information
BSTC-240-T-098-12-GT-320-LF
120 Position Header Spacer Connector 0.079" (2.00mm) Gold Through Hole
Documents
Technical documentation and resources
No documents available
