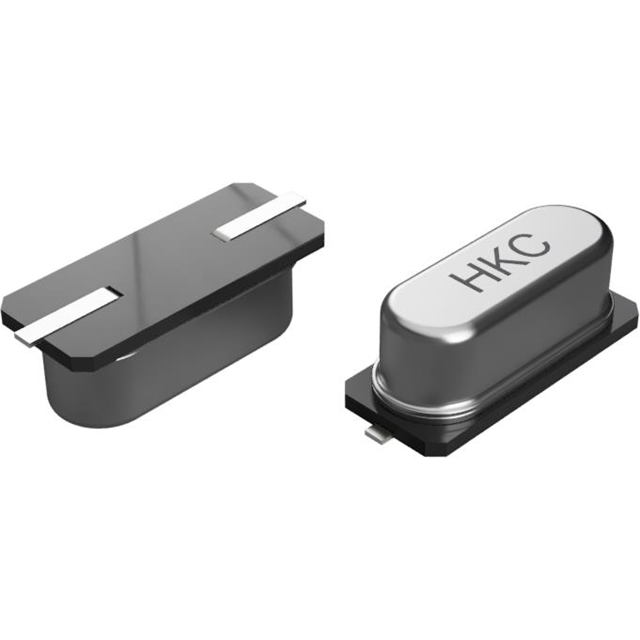

SS00M1600AS9C-TR
ActiveHKC
CRYSTAL 16MHZ 10PPM 8PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS00M1600AS9C-TR
ActiveHKC
CRYSTAL 16MHZ 10PPM 8PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS00M1600AS9C-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 16 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 4.1 mm |
| Height - Seated (Max) [Max] [z] | 0.161 " |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | HC-49/US |
| Size / Dimension [x] | 0.445 " |
| Size / Dimension [x] | 11.3 mm |
| Size / Dimension [y] | 3.81 mm |
| Size / Dimension [y] | 0.15 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.08 | |
| 4000 | $ 0.07 | |||
| 6000 | $ 0.07 | |||
| 8000 | $ 0.07 | |||
Description
General part information
SS00M1600AS9C-TR
16 MHz ±10ppm Crystal 8pF 30 Ohms HC-49/US
