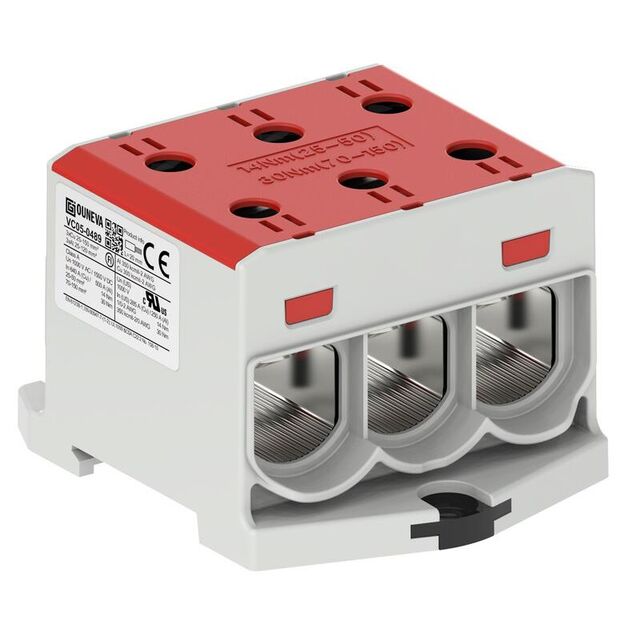

VC05-0489
ActiveOuneva
OTL 3XAL/CU 25-150MM RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VC05-0489
ActiveOuneva
OTL 3XAL/CU 25-150MM RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VC05-0489 |
|---|---|
| Current Rating (Amps) | 640 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 1 |
| Line Side Wire/Stud Size | 350 kcmil |
| Line Side Wire/Stud Size | #2CU |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 350 MCM (kcmil), 2 |
| Number of Poles | 3 |
| Type | Power Distribution Block |
| Voltage - Rated | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 12 | $ 61.51 | |
| 240 | $ 57.33 | |||
Description
General part information
VC05-0489
3 Pole Power Distribution Block 640 A 1500 V
