7015-1064
ActiveAmphenol SV Microwave

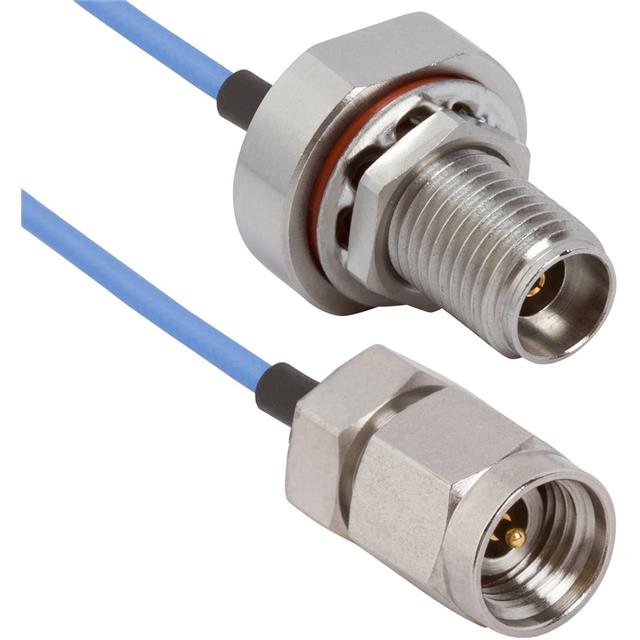

CBL ASSY 2.92MM JACK TO PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
7015-1064
ActiveAmphenol SV Microwave
CBL ASSY 2.92MM JACK TO PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7015-1064 |
|---|---|
| 1st Connector | Jack |
| 1st Connector | 2.92 mm |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | 0.047" Semi-Rigid Cable |
| Color | Blue |
| Features | Shielded |
| Frequency - Max [Max] | 40 GHz |
| Length | 152.4 mm |
| Length | 6 in |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.92 mm |
| Style [Min] | 2.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 155.86 | |
Description
General part information
7015-1064
Cable Assembly Coaxial 2.92mm to 2.92mm 0.047" Semi-Rigid Cable 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
