U0066032NP004AR
ActiveStetron

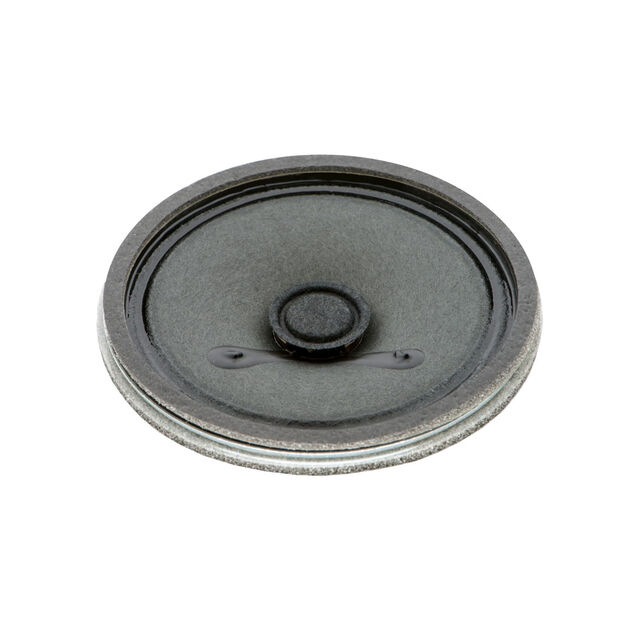

LOUDSPEAKER, 66 MM ; 32 OHMS, 0.
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
U0066032NP004AR
ActiveStetron
LOUDSPEAKER, 66 MM ; 32 OHMS, 0.
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | U0066032NP004AR |
|---|---|
| Distortion Rating [Max] | 5 % |
| Efficiency - dBA | 94 dBA |
| Efficiency - Testing | 500 mm, 250 mW |
| Efficiency - Type | Sensitivity |
| Frequency - Self Resonant | 320 Hz |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 320 Hz |
| Height - Seated (Max) [Max] | 0.673 in |
| Height - Seated (Max) [Max] | 17.1 mm |
| Impedance | 32 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Port Location | Top |
| Power - Max [Max] | 1 W |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension | 66 mm |
| Size / Dimension [diameter] | 2.598 in |
| Technology | Magnetic |
| Termination | Wire Leads with Connector |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.08 | |
| 10 | $ 5.90 | |||
| 50 | $ 5.55 | |||
Description
General part information
U0066032NP004AR
32 Ohms General Purpose Speaker 500 mW 320 Hz ~ 5 kHz Top Round
