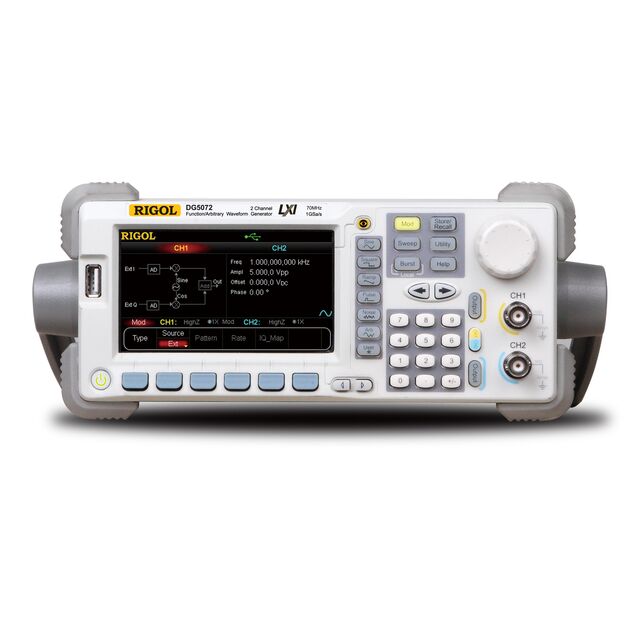

DG5072
ActiveRIGOL Technologies, Inc
70 MHZ, 2 CHANNEL, 14 BIT ARBITR
Deep-Dive with AI
Search across all available documentation for this part.
DG5072
ActiveRIGOL Technologies, Inc
70 MHZ, 2 CHANNEL, 14 BIT ARBITR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DG5072 |
|---|---|
| Display Type | TFT - Color LCD |
| Frequency - Max [Max] | 350 MHz |
| Function | Sweep, Arbitrary |
| Number of Channels [custom] | 2 |
| Signal Types | Sine, Triangle, Pulse, Ramp, Square |
| Supply Voltage [Max] | 240 V |
| Supply Voltage [Min] | 100 V |
| Type | Function Generator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DG5072
350 MHz Arbitrary, Sweep Function Generator 2 Channel Sine, Square, Triangle, Ramp, Pulse Display Type TFT - Color LCD
Documents
Technical documentation and resources
No documents available
