SV-7-XX-48
ActiveMaury Microwave
COAX CABLE 7MM TO 7MM 4'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SV-7-XX-48
ActiveMaury Microwave
COAX CABLE 7MM TO 7MM 4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SV-7-XX-48 |
|---|---|
| 1st Connector | 7 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Non-Gendered |
| 2nd Connector | 7 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Non-Gendered |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Frequency - Max [Max] | 18 GHz |
| Length | 1200 mm |
| Length | 4 ft |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style [Max] | 7 mm |
| Style [Min] | 7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 2717.00 | |
| 5 | $ 2610.00 | |||
| 10 | $ 2392.00 | |||
Description
General part information
SV-7-XX-48

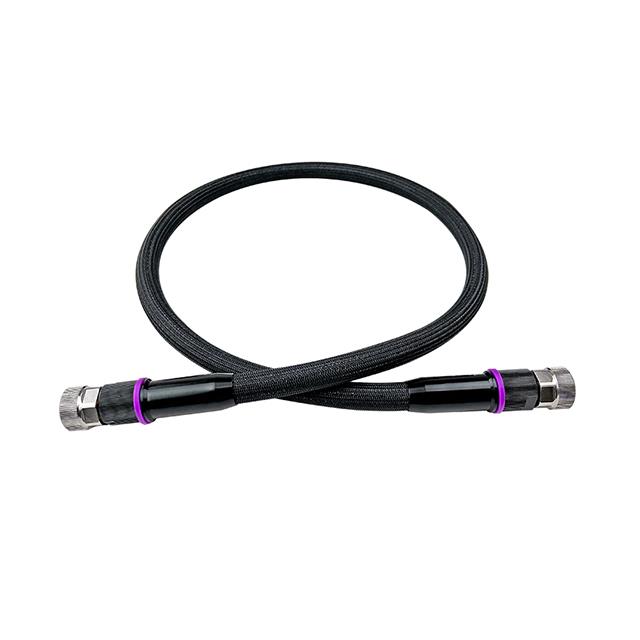

Cable Assembly Coaxial 7mm to 7mm 48.0" (1.2m) 4.0'
Documents
Technical documentation and resources
