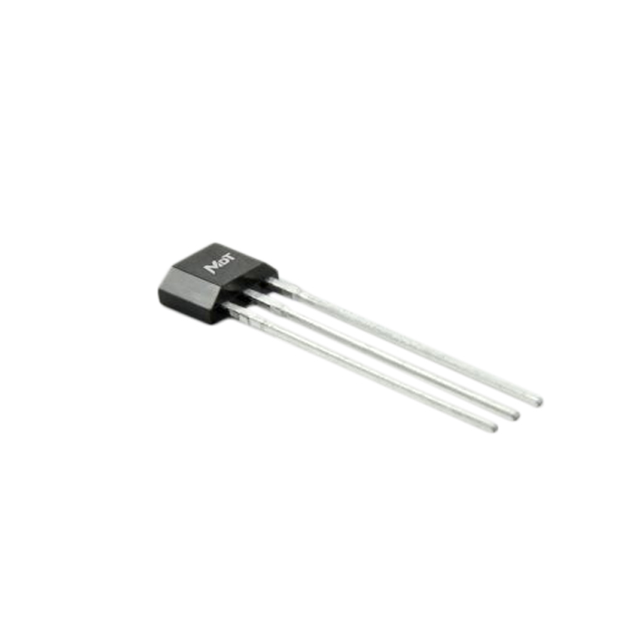

TMR1208T
ActiveMDT
TMR SENSOR MAG SW BIPL 5G 1.5UA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMR1208T
ActiveMDT
TMR SENSOR MAG SW BIPL 5G 1.5UA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR1208T |
|---|---|
| Current - Output (Max) [Max] | 9 mA |
| Current - Supply (Max) [Max] | 1.5 µA |
| Features | Temperature Compensated |
| Function | Latch, Bipolar Switch |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Push-Pull |
| Package / Case | TO-92-3 Long Body, TO-226-3 |
| Polarization | South Pole, North Pole |
| Sensing Range | 0.5 mT, -1 mT |
| Supplier Device Package | TO-92S |
| Technology | Magnetoresistive |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 0.99 | |
| 30 | $ 0.96 | |||
| 100 | $ 0.93 | |||
| 300 | $ 0.90 | |||
| 1000 | $ 0.87 | |||
| 3000 | $ 0.79 | |||
| 9000 | $ 0.69 | |||
| 30000 | $ 0.59 | |||
Description
General part information
TMR1208T
Digital Switch Latch, Bipolar Switch Push-Pull Magnetoresistive TO-92S
