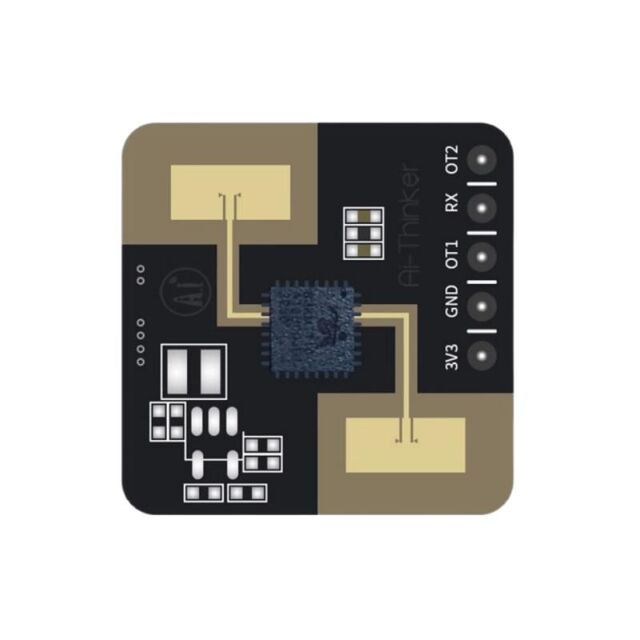

RD-03
ActiveAi-Thinker
RF TXRX MOD ISM>1GHZ CHIP TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD-03 |
|---|---|
| Antenna Type | Integrated, Chip |
| Data Rate | 115.2 kbps |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24 GHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| RF Family/Standard | General ISM > 1GHz |
| Serial Interfaces | UART |
| Utilized IC / Part | S3KM1110 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.27 | |
| 10 | $ 6.67 | |||
| 25 | $ 6.06 | |||
| 100 | $ 5.45 | |||
| 250 | $ 5.00 | |||
| 500 | $ 4.54 | |||
| 1000 | $ 4.09 | |||
Description
General part information
RD-03
General ISM > 1GHz Transceiver Module 24GHz ~ 24.25GHz Integrated, Chip Through Hole
