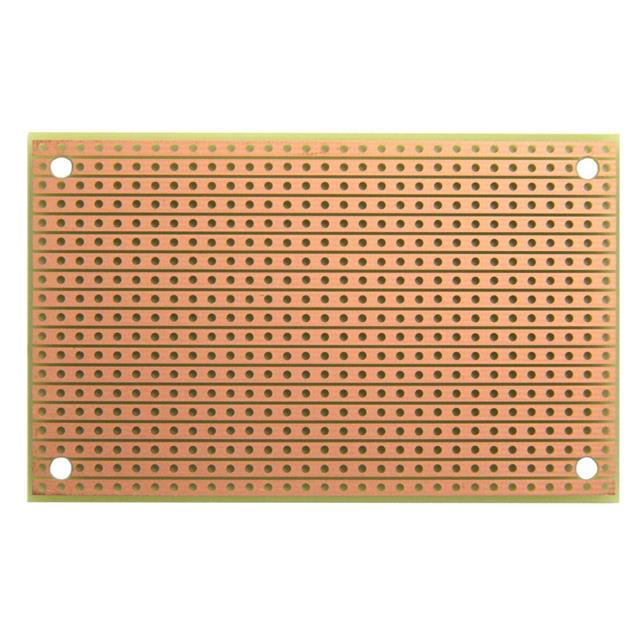

ST1
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ST1
ActiveBusBoard Prototype Systems
BREADBOARD GENERAL PURPOSE PTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ST1 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Circuit Pattern | Common Bus |
| Hole Diameter [diameter] | 0.037 in |
| Hole Diameter [diameter] | 0.94 mm |
| Material | FR4 Epoxy Glass |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Plating | Plated Through Hole (PTH) |
| Proto Board Type | Breadboard, General Purpose |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [x] | 3.15 in |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.30 | |
| Bulk | 3 | $ 25.80 | ||
Description
General part information
ST1
Breadboard, General Purpose Plated Through Hole (PTH) Common Bus 0.1" (2.54mm) Grid
Documents
Technical documentation and resources
