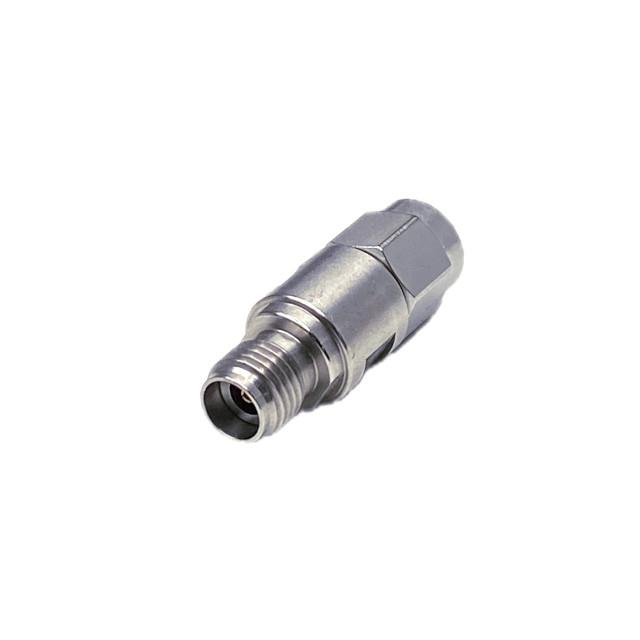

K292J-3.5P
ActiveTo-Conne Co., Ltd. (TYC)
2.92MM JACK TO 3.5MM PLUG
Deep-Dive with AI
Search across all available documentation for this part.
K292J-3.5P
ActiveTo-Conne Co., Ltd. (TYC)
2.92MM JACK TO 3.5MM PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K292J-3.5P |
|---|---|
| Adapter Series [Max] | 3.5 mm |
| Adapter Series [Min] | 2.9 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert From (Adapter End) | OS-2.9, Jack, Female Socket |
| Frequency - Max [Max] | 34 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 119.79 | |
| 10 | $ 107.81 | |||
| 25 | $ 102.42 | |||
| 50 | $ 97.30 | |||
Description
General part information
K292J-3.5P
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 3.5mm Plug, Male Pin 50 Ohms
