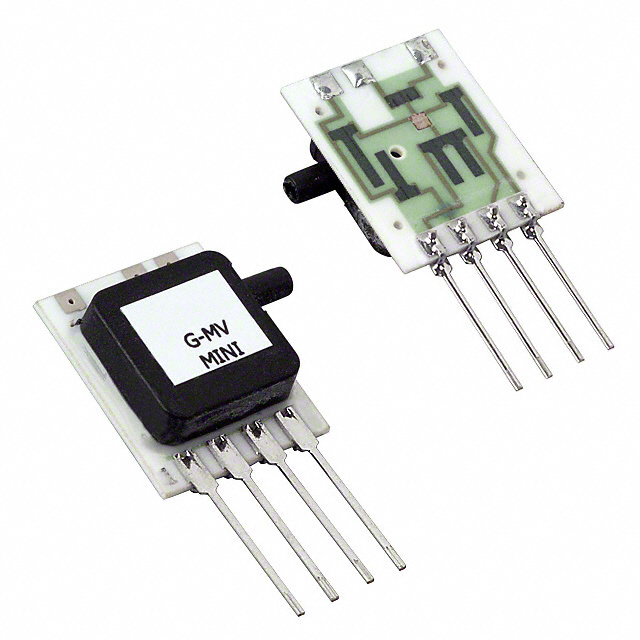

10 INCH-G-MV-MINI
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSIG 0.08" .02V
Deep-Dive with AI
Search across all available documentation for this part.
10 INCH-G-MV-MINI
ActiveAmphenol All Sensors Corporation
SENSOR 0.36PSIG 0.08" .02V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10 INCH-G-MV-MINI |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Mounting Type | Through Hole |
| Operating Pressure | 0.36 PSI |
| Operating Pressure | 2.49 kPa |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output [Max] | 20 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 4-SIP Module |
| Port Size | 0.08 " |
| Port Size | 2.03 mm |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply | 16 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 63.41 | |
Description
General part information
10 INCH-G-MV-MINI
Pressure Sensor 0.36PSI (2.49kPa) Vented Gauge Male - 0.08" (2.03mm) Tube 0 mV ~ 20 mV (12V) 4-SIP Module
Documents
Technical documentation and resources
No documents available
