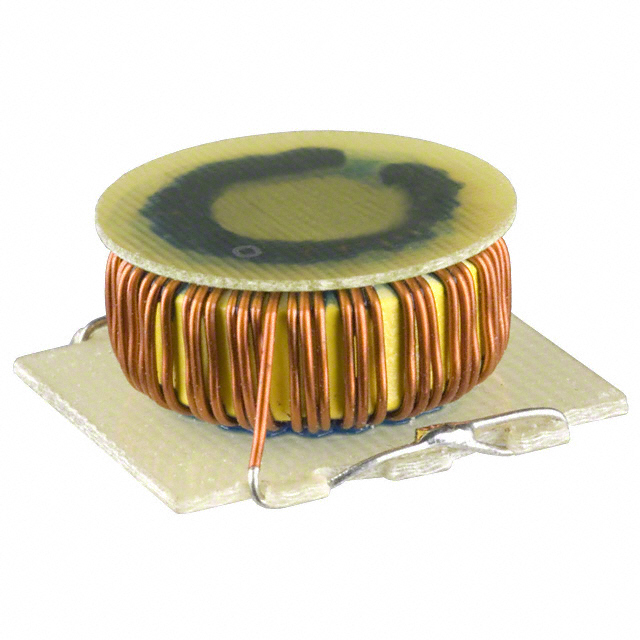

SWS-3.00-110
ObsoleteAmgis, LLC
FIXED IND 110UH 3A 90 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SWS-3.00-110
ObsoleteAmgis, LLC
FIXED IND 110UH 3A 90 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SWS-3.00-110 |
|---|---|
| Current Rating (Amps) | 3 A |
| DC Resistance (DCR) | 90 mOhm |
| Height - Seated (Max) | 12.85 mm |
| Height - Seated (Max) [Max] | 0.506 in |
| Inductance | 110 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.925 " |
| Size / Dimension [x] | 23.5 mm |
| Size / Dimension [y] | 23.5 mm |
| Size / Dimension [y] | 0.925 in |
| Tolerance | 20 % |
| Type | Toroidal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SWS-3.00-110
110 µH Unshielded Toroidal Inductor 3 A 90mOhm Nonstandard
