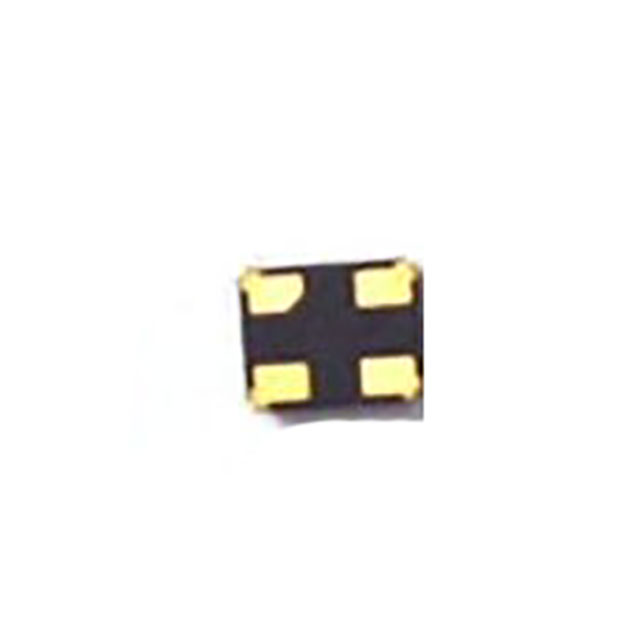

SF2395H
ActiveRFMi
FILTER, SAW, 1224 MHZ, 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF2395H
ActiveRFMi
FILTER, SAW, 1224 MHZ, 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF2395H |
|---|---|
| Applications | GPS |
| Bandwidth | 52 MHz |
| Frequency - Center | 1.224 GHz |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 2.05 mm |
| Size / Dimension [x] | 0.081 in |
| Size / Dimension [y] | 0.065 in |
| Size / Dimension [y] | 1.65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.97 | |
| Tape & Reel (TR) | 1 | $ 0.48 | ||
| 1 | $ 0.53 | |||
Description
General part information
SF2395H
1.224GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 3dB 52MHz Bandwidth 4-SMD, No Lead
